- Research article
- Open Access
Genome-wide association studies of plant architecture-related traits and 100-seed weight in soybean landraces
BMC Genomic Data volume 22, Article number: 10 (2021)
Plant architecture-related traits (e.g., plant height (PH), number of nodes on main stem (NN), branch number (BN) and stem diameter (DI)) and 100-seed weight (100-SW) are important agronomic traits and are closely related to soybean yield. However, the genetic basis and breeding potential of these important agronomic traits remain largely ambiguous in soybean (Glycine max (L.) Merr.).
In this study, we collected 133 soybean landraces from China, phenotyped them in two years at two locations for the above five traits and conducted a genome-wide association study (GWAS) using 82,187 single nucleotide polymorphisms (SNPs). As a result, we found that a total of 59 SNPs were repeatedly detected in at least two environments. There were 12, 12, 4, 4 and 27 SNPs associated with PH, NN, BN, DI and 100-SW, respectively. Among these markers, seven SNPs (AX-90380587, AX-90406013, AX-90387160, AX-90317160, AX-90449770, AX-90460927 and AX-90520043) were large-effect markers for PH, NN, BN, DI and 100-SW, and 15 potential candidate genes were predicted to be in linkage disequilibrium (LD) decay distance or LD block. In addition, real-time quantitative PCR (qRT-PCR) analysis was performed on four 100-SW potential candidate genes, three of them showed significantly different expression levels between the extreme materials at the seed development stage. Therefore, Glyma.05 g127900, Glyma.05 g128000 and Glyma.05 g129000 were considered as candidate genes with 100-SW in soybean.
These findings shed light on the genetic basis of plant architecture-related traits and 100-SW in soybean, and candidate genes could be used for further positional cloning.
Soybean [Glycine max (L.) Merr.] is an important economic and oil crop, providing abundant plant proteins and oil to humans . Researchers have increased soybean yield as much as possible through traditional breeding and molecular breeding methods . The effort to meet soybean demand on existing cropland areas for a global population of 9.7 billion by the year 2050 puts pressure on narrowing the existing gap between the average yield and yield potential [3, 4]. Plant breeders continually research how to maximize soybean yield to solve the contradiction between supply and demand . Plant architecture is a key factor affecting planting density and grain yield in soybean. The ideal soybean plant architecture optimizes the canopy architecture, improves photosynthetic efficiency, and prevents lodging, thus resulting in high overall grain yield [5, 6]. 100-seed weight (100-SW) is an important component of soybean yield and an important target trait in field breeding . Moreover, larger seeds, which have greater energy stores, may improve seedling establishment . Given the importance of four plant architecture-related traits (plant height (PH), number of nodes on main stem (NN), branch number (BN) and stem diameter (DI)) and 100-SW of soybean, a large number of QTLs associated with these traits have been identified in the past decade , but the genes underlying the QTLs and their functions remain largely unknown.
Plant architecture-related traits and 100-SW of soybean are complex quantitative traits influenced by multiple QTLs and are susceptible to environmental factors . Previous studies were conducted to dissect the genetic basis of plant architecture-related traits and 100-SW in biparental populations. Hundreds of QTLs were detected across the whole genome of soybean, with many being simultaneously detected in multiple populations [10,11,12,13]. These studies demonstrated that the genetic mapping of quantitative traits using genetic linkage maps is an efficient approach for identifying QTLs. Currently, numerous researchers use molecular markers to identify QTLs controlling these important agronomic traits . Given the increased use of molecular markers to identify QTLs, opportunities exist to significantly increase our knowledge of the genetic basis of these traits and to accelerate soybean breeding . To date, many QTLs for plant architecture-related traits and 100-SW have been reported in investigations using biparental populations [11, 16,17,18]. According to the SoyBase database (http://www.soybase.org), there are 239 QTLs controlling PH in soybean, which are distributed on 20 chromosomes, and 37 QTLs related to NN. For BN and 100-SW, 21 and 297 related QTLs have been reported, respectively. And there were a few reports on the QTL position of DI in soybean. Despite the extensive QTL analysis on plant architecture-related traits and 100-SW of soybean, traditional biparent segregation populations have several disadvantages, including limited genetic variation and mapping resolution .
With the development of genotyping and sequencing technologies, the pace of genetic research on crop quantitative traits has been accelerated. Comparing with bi-parental QTL mapping studies, the genome-wide association study (GWAS) is a more powerful method for dissecting the QTLs underlying agronomically important traits in natural populations. High density of markers in the GWAS also enables one to predict or identify causal genes . In recent years, GWAS has rapidly became a popular and powerful tool to detect natural variation that accounts for complex and important agronomic traits of crops, and has been successfully applied to the studies of many crops, such as Arabidopsis thaliana , rice [22, 23], maize [24, 25], soybean , and foxtail millet . In soybean, the evaluation of several specific agronomic traits, including seed protein content and oil concentration [27, 28], sudden death syndrome resistance , cyst nematode resistance [30, 31], and flowering time , were conducted through GWAS by genotyping either with Illumina Bead Chips or specific locus amplified fragment sequence. These studies provide valuable resources for the future molecular breeding of soybean.
In recent years, association studies have been performed in grain soybean for plant architecture and yield-related traits, and they have achieved great success in identifying loci with high mapping precision . Through genomic consequences of selection and GWAS, a total of 125 candidate selection regions were identified of 9 agronomic traits and 5 potential candidate genes were predicted . Zhang et al. (2016) conducted a genome-wide association study in a population of 309 soybean germplasm accessions, identified 22 loci of minor effect and predicted 3 candidate genes on chromosome 19 . Fang et al. (2017) collected 809 soybean materials worldwide and performed a two-year phenotypic determination of 84 agronomic traits in three locations, and identified 245 SNPs, including known genes such as Dt1, E2, E1, Ln, Dt2, Fan and Fap, as well as 16 unreported loci, which are pleiotropic for different traits . Diers et al. (2018) performed an association mapping for the NAM population of 5600 inbred lines, and SNP data revealed 23 significant marker-trait associations for yield, 19 for maturity, 15 for plant height, 17 for plant lodging, and 29 for seed mass . Association mapping has been used to identify significantly associated locus for flowering stage, grain filling stage, maturity stage, yield and 100-SW of soybean, and detected nine, six, four, five and two significantly associated SNPs, respectively . A total of 58 SNPs that were significantly associated with internode number (IN), plant height (PH), seed weight (SW), and seed yield per plant (SYP) were identified by GWAS, and 28 related candidate genes were predicted . By using GWAS, 14 quantitative trait nucleotides (QTNs) were identified to be associated with seed length, 13 with seed width and 21 with seed thickness in four tested environments . Using the multilocus GWAS methods, a total of 118 QTNs of 100-seed weight were detected, and three potential candidate genes were identified in soybean . Although a lot of researches for plant architecture and yield-related traits have been carried out in soybean, the molecular mechanism underlying these traits in soybean remains unclear due to their complexity genetic mechanism.
In this study, we collected 133 diverse soybean landraces, cultivated them at two locations for 2 years, and phenotyped them for the four plant architecture-related traits (PH, NN, BN and DI) and 100-SW. Using the 180 K AXIOM SoyaSNP array, more than 160 thousand genetic markers were generated. After filtering and quality control, a total of 82,187 high-quality SNPs (MAF > 0.05, missing data < 10%) were used for association mapping. The endeavor from comprehensive GWAS analyses enabled the identification of the underlying genetic loci and prediction of potential candidate genes for five traits. In addition, candidate genes of 100-SW were initially confirmed by qRT-PCR. The objectives of this study were to reveal the genetic basis of plant architecture-related traits and 100-SW in soybean and provide valuable markers and candidate genes for the molecular breeding of soybean.

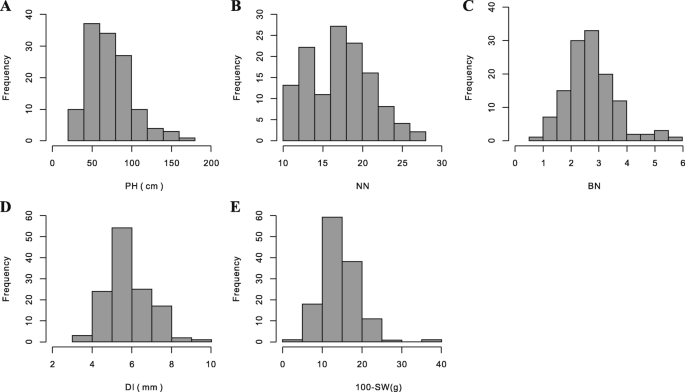

Phenotypic analysis of the four plant architecture-related traits and 100-SW
Four plant architecture-related traits and 100-SW were investigated using the 133 soybean landraces planted in two consecutive years at two locations. Extensive phenotypic variations were observed for all traits in the 133 soybean landraces (Table 1). The phenotypic variation of PH, NN, BN and DI in the 2016JP, 2017JP and 2017DT environments were 21.64–249.33 cm, 9.11–28.83, 0–7.33 and 2.90–11.01 mm, respectively. The 100-SW ranged from 3.76 to 37.23 g in the 2017JP and 2017DT environments. The average of PH in 2017DT was higher than that in 2016JP and 2017JP, whereas all of the other traits revealed little variation (Table 1). The frequency distribution of the five traits based on best linear unbiased prediction (BLUP) values displayed an approximately normal distribution, except for a few materials that had large deviations (Fig. 1). Analysis of variance indicated that the genotype (G), environment (E) and genotype by environment interaction (G × E) had significant effects on PH, NN and DI (P < 0.01; Table 1). The genotype (G) and genotype by environment interaction (G × E) had significant effects on BN and 100-SW, but the genotype by environment interaction (G × E) had no significant effects. Heritability (h2) was calculated for the four plant architecture-related traits and 100-SW (Table 1). The heritabilities of the five traits ranged from 65.17 to 98.66%. Among them, the heritability of 100-SW was the highest at 98.66%, while the heritability of BN was the lowest at 65.17%. The correlation coefficients for the five traits were calculated based on the BLUP values and are summarized in Table 2. There was a significant positive correlation between PH and NN, with a correlation coefficient of 0.894. There was also a significant positive correlation between PH, NN, BN and DI. Additionally, 100-SW was only significantly positively correlated with DI, with a correlation coefficient of 0.244. Correlation analysis showed that there was a positive correlation between PH, NN, BN, DI and 100-SW in soybean.
Genetic diversity, LD and population structure
Analyses of the SNP data, LD and population structure used in this study were reported by genotyping the 133 soybean landraces with the 180 K AXIOM Soya SNP array . According to MAF > 0.05 and missing data < 10%, we detected a total of 82,187 SNPs for subsequent analysis. The marker density ranged from 16.28 kb/SNP to 9.57 kb/SNP, with an average of 11.76 kb/SNP. The average LD decay of all chromosomes was 119.07 kb at the r2 calculated via PLINK V1.07 (Additional file 1: Fig. S1) . Previous studies have used 8270 SNPs and STRUCTURE 2.3.4 software to analyze population structure of the population of the 133 soybean landraces . Population structure analysis showed that the mean LnP (K) did not plateau at a single K value, but instead continued to increase with relatively constant increments. Calculation of Delta K revealed a sharp peak at K = 2, therefore, the 133 soybean landraces were divided into two subgroups, designated subgroup 1 and subgroup 2 (Additional file 2: Fig. S2) .

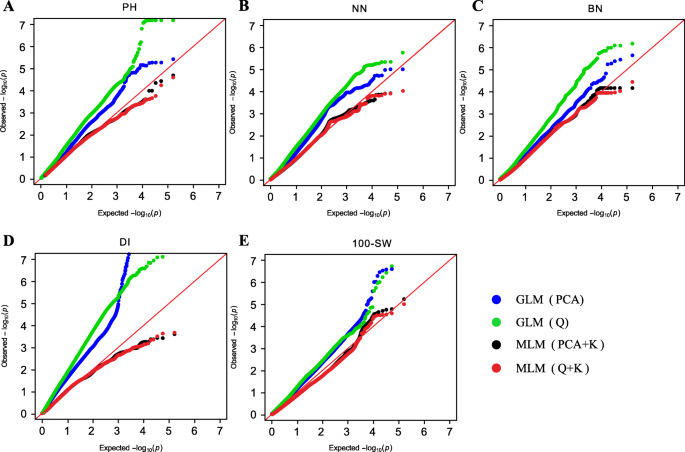

Model comparison for controlling false associations
Association mapping for the four plant architecture-related traits and 100-SW were performed to evaluate the effects of population structure (Q), principal component analysis (PCA) and familial relationship (K) on controlling false associations. For the five traits, the observed P values from the GLM (PCA) and GLM (Q) models greatly deviated from the expected P values assuming that no association existed. The P values from the MLM (PCA + K) and MLM (Q + K) models were similar and close to the expected P values (Fig. 2). Although the MLM (PCA + K) model detected fewer associations than the MLM (Q + K) model, the observed P values for the Q + K model were closer to the expected P values than the MLM (PCA + K) model, indicating that the MLM (Q + K) model could effectively control false positive associations and avoid false negative associations. Therefore, in the current study, the MLM (Q + K) model was chosen for association mapping.
Association mapping of the four plant architecture-related traits and 100-SW
The MLM model, with both Q and K-matrices as covariates, was used in the association study of 82,187 SNPs with PH, NN, BN, DI and 100-SW from the 133 soybean landraces. To identify SNPs associated with the five traits, we used the MLM (Q + K) model to analyze five traits in the different environments. A total of 59 SNPs was significantly associated (−log10(P) ≥ 3.5) with five traits in at least two environments. Among them, 12, 12, 4, 4 and 27 SNPs were significantly associated with PH, NN, BN, DI and 100-SW, respectively (Fig. 3 and Table 3). For PH, 12 SNPs were detected in at least two environments. Among these SNPs, AX-90380587 and AX-90406013 were markers with larger effects and were repeatedly detected in three environments, and the contribution of a single marker to the observed phenotypic variation was 14.05–18.40% (Table 3). For NN, 12 SNPs were detected in at least two environments. Among these SNPs, AX-90387160 and AX-90317160 were markers with larger effects and were repeatedly detected in three environments, and the contribution of a single marker to the observed phenotypic variation was 13.35–19.21% (Table 3). For BN, 4 SNPs were detected in at least two environments. Among these SNPs, AX-90449770 was a larger effect marker which was repeatedly detected in three environments, and its contribution to the observed phenotypic variation was 10.71–11.51% (Table 3). For DI, 4 SNPs were detected in at least two environments. Among these SNPs, AX-90460927 was markers with larger effects and were repeatedly detected in two environments, and the contribution of a single marker to the observed phenotypic variation was 16.03% (Table 3). For 100-SW, twenty-seven SNPs were detected in at least two environments. Among these SNPs, AX-90520043 was a larger effect marker which was repeatedly detected in two environments, and its contribution to the observed phenotypic variation was 20.42–21.0% (Table 3). Based on the stability of the SNPs with significant associations in each environment and the higher phenotype variation explanations, seven SNPs (AX-90380587, AX-90406013, AX-90387160, AX-90317160, AX-90449770, AX-90460927 and AX-90520043) with large effects were selected for subsequent candidate gene prediction.
Prediction of candidate genes
Using haplotype analysis of the LD decay distance (± 119.07 kb) where 7 SNPs with large effects markers are located, we found that there is an LD block located in the range of 130.9 kb (32141519–32,272,444) on chromosome 5 with the SNP marker AX-90520043, which is only significantly associated with 100-SW. Compared to the candidate region where the marker AX-90520043 is located, the LD block reduces the candidate region (± 119.07 kb) by approximately 107 kb (Fig. 4a). Compared with the alternative alleles, the 100-SW of the materials carrying the favorable allele (GG) at AX-90520043 was 21.7% higher than the materials carrying the unfavorable allele (TT) (Fig. 4b). Based on the LD decay distance or the LD block and functional annotations, we selected 15 candidate genes for the four plant architecture-related traits and 100-SW in these regions near those seven SNPs with large effects. Among them, the number of candidate genes for PH, NN, BN, DI and 100-SW were four, two, one, four and four, respectively. The detailed functional annotations are shown in Table 4.
To confirm whether the potential candidate genes participated in the accumulation of 100-SW, we tested the expression patterns of the four genes (Glyma.05 g127900, Glyma.05 g128000, Glyma.05 g129000 and Glyma.05 g129400) via qRT-PCR in the seeds from the extreme materials at four developmental growth stages (R3, R5, R6 and R7). The genotype of the ZDD06067 (100-SW 24.36 ± 1.67 g) and ZDD20532 (100-SW 4.55 ± 0.94 g) extreme materials at the AX-90520043 locus were AA (unfavorable allele) and TT (favorable allele), respectively. Among the four potential candidate genes associated with 100-SW, Glyma.05 g127900, Glyma.05 g128000 and Glyma.05 g129000 showed significant differences in expression between ZDD06067 and ZDD20532 at four stages during soybean seed development (P ≤ 0.01) (Fig. 5). During all four tested growth stages, there was a pronounced differential expression of the 100-SW material genotype by ZDD06067 (higher) and 100-SW genotype ZDD20532 (lower). Therefore, Glyma.05 g127900, Glyma.05 g128000 and Glyma.05 g129000 may be used as candidate genes for soybean 100-SW, as they negatively regulate 100-SW in soybean.
The large phenotypic variations observed within the four plant architecture-related traits and 100-SW allowed us to identify the best genes with the largest effects (Table 1). In this study, the heritabilities of the five traits ranged from 65.17 to 98.66%; the smallest heritability was BN and the largest was 100-SW. The heritability of NN is approximately 40% different from that calculated by Zhang et al. (2015), but the heritabilities for other traits were not much different . This may be caused by the fact that NN is greatly affected by environmental factors. In addition, the average of PH in 2017DT was higher than that in 2016JP and 2017JP, which may be due to the relatively sufficient rain in 2017DT and dry weather in 2016JP and 2017JP (Table 1). The results of previous studies confirmed that PH, NN, BN, DI and 100-SW have a crucial role in soybean plant architecture or yield [42, 43]. Correlation analysis showed that there was a significant positive correlation between PH, NN, BN and DI, while 100-SW was only significantly positively correlated with DI. This may be fact that PH, NN, BN and DI are plant architecture traits, and 100-SW is related to yield traits. Additionally, DI was significantly positively correlated with 100-SW, which indicated that the photosynthetic products of the larger stems were transported from the source to the reservoir faster, thus the flux was larger, which played an important role in the later grain and development . Therefore, during the soybean breeding process, breeders should pay special attention to selecting materials with slightly higher PH and NN, moderate BN, and thicker DI to ensure high soybean yield.
In this study, the MLM (Q + K) model was used for a GWAS to examine the four plant architecture-related traits and 100-SW. Fifty-nine stable and significant SNPs were identified, of which 25 were located in QTLs of the reported related traits. Thirty-four novel loci were identified in this study. The three SNPs (AX-90335719, AX-90403639, and AX-90466852) that were significantly associated with PH were consistent with the results of Sun et al. (2006) . These SNPs, which are significantly associated with NN, BN, and DI are all new loci identified in this study. Of the 27 SNPs significantly associated with 100-SW, 22 were within reported QTLs for seed weight, and 5 were new loci. The significantly associated marker AX-90435834 located on chromosome 4 is located within previously reported two seed weight QTLs [16, 46]. Both AX-90520043 and AX-90370125 are located within the previously reported seed weight related QTLs [11, 47, 48]. The 10 SNPs on chromosome 10 are close located and may belong to the same seed weight QTL which are located within previously reported seed weight QTL . Both AX-90462182 on chromosome 11 and AX-90369283 on chromosome 18 are located within previously reported QTLs [48,49,50]. In this study, thirty-four new loci were identified and this may be related to the different populations and environments used for association mapping.
Through the functional annotation of genes, the current study predicted a total of 15 potential candidate genes associated with PH, NN, BN, DI and 100-SW. Among these 15 genes, four genes (Glyma.05 g030900, Glyma.14 g194100, Glyma.14 g194400 and Glyma.14 g194600) are related to PH. The proteins encoded by Glyma.05 g030900 and Glyma.14 g194400 belong to the pentatrico peptide repeat (PPR) family of proteins, which are involved in the metabolic regulation of RNA, act as binding proteins, and have chloroplasts and mitochondria as their sites of action . Glyma.14 g194100 and Glyma.14 g194600 encode a zinc finger family protein and ATNDI1, respectively. The zinc finger family protein gene is expressed in different developmental stages of different tissues of plants, regulating seed development and germination, and plays an important role in plant growth and development . The potential candidate genes for NN are Glyma.19 g128800 and Glyma.19 g129100, which encode an auxin transporter protein and zinc finger protein, respectively. Glyma.06 g294700, a candidate gene for BN, encodes a GDSL-type lipase that belongs to a large gene family in plants. Plant GDSL lipase plays an important role in plant growth and development, organ morphogenesis and lipid metabolism . There are four genes related to DI, among which Glyma.10 g210500 encodes a GAGA-binding transcription factor protein, whereas Glyma.10 g210600, Glyma.10 g211000 and Glyma.10 g212200 encode auxin response factor 16 (ARF16), a plasma membrane protein and ubiquitin-binding enzyme 19 (UBC19), respectively. Additionally, this study also predicted four candidate genes (Glyma.05 g127900, Glyma.05 g128000, Glyma.05 g129000 and Glyma.05 g129400) that may be related to 100-SW. The results of qRT-PCR analysis indicated that Glyma.05 g127900, Glyma.05 g128000 and Glyma.05 g129000 were differentially expressed in 100-SW extreme materials. Among these genes, Glyma.05 g127900 encode a ribonucleoprotein, its homologous gene is SAD1 in Arabidopsis. Studies have confirmed that SAD1 encodes a polypeptide similar to multifunctional Sm-like-snRNP proteins that are required for mRNA splicing, export, and degradation, the sad1 mutant of Arabidopsis can delay seed germination . Glyma.05 g128000 encode a chlorophyll a/b binding protein, previous studies have shown that the protein can bind to photosynthetic pigments to form a light-harvesting pigment protein complex to participate in light energy transfer and play a role in plant photosynthesis . In addition, AX-90520043, which is significantly associated with 100-seed weight, is located in the CDS region of Glyma.05 g128000. Glyma.05 g128000 may affect the accumulation and transport of soybean dry matter by regulating photosynthetic reaction, and it is likely to participate in the regulation of seed weight in soybean. Glyma.05 g129000 encodes a HMG-box DNA binding protein. At present, the regulatory network of HMG-box DNA binding protein is still unclear. It may be involved in the regulation of genes involved in soybean seed development, and then participate in the regulation of 100-SW in soybean. However, further evidence is needed to functionally validate this hypothesis.
In summary, our results demonstrated that the four plant architecture-related traits and 100-SW in soybean are substantially correlated with both phenotype and genotype. The utilization of the highly associated markers detected in multiple environments and the potential candidate genes could accelerate the optimization of molecular breeding and the understanding of the genetic mechanisms underlying agronomic traits.
In this study, we identified 12, 12, 4, 4 and 27 SNPs associated with PH, NN, BN, DI and 100-SW, respectively, via GWAS. Most markers were located within or close to QTLs identified in previous studies. We were particularly interested in the large-effect markers AX-90380587, AX-90406013, AX-90387160, AX-90317160, AX-90449770, AX-90460927 and AX-90520043 for PH, NN, BN, DI and 100-SW, and 15 potential candidate genes that were predicted based on functional annotations. According to the expression analyses, Glyma.05 g127900, Glyma.05 g128000 and Glyma.05 g129000 are proposed as the candidate genes for 100-SW, but further investigation is needed for verification of this hypothesis. These findings shed light on the genetic basis of PH, NN, BN, DI and 100-SW, and candidate genes could be used for further positional cloning.
Plant materials, field trials and trait phenotyping
The germplasm for this study contained 133 soybean landraces selected from the soybean mini core collection of 23,587 soybean germplasms . Those 133 soybean landraces came from 24 provinces and were distributed in four ecoregions of China as follows: the Northeast region, the North region, the Huang-huai region and the South region . The experiment materials were provided by Lijuan Qiu, a researcher from the Chinese Academy of Agricultural Sciences.
One hundred and thirty three soybean landraces were planted at Jangpu (N 31.2, E 118.4) in 2016 and 2017 and at Dangtu (N 31.6, E 118.5) in 2017 with three randomized replications, with one row per plot, 40 plants per row, 10 cm between plants within each row and 50 cm between rows. 2016JP, 2017JP and 2017DT represent the environments of Jiangpu in 2016, Jiangpu in 2017 and Dangtu in 2017, respectively. The field management was performed under normal soybean production conditions. Five major plant traits, including PH, NN, BN, DI and 100-SW, were investigated. For each of the 2016JP, 2017JP and 2017DT environments, 5 plants were randomly selected for the determination of PH, NN, BN, and DI. In 2017JP and 2017DT, 100-SW determination was performed for each block. Plant height (PH, measured in cm) is the length of the cotyledonary node to the top of the plant. Number of nodes on main stem (NN) indicate the number of nodes from the cotyledonary node to the top of the main stem node. Branch number (BN) indicates the effective number of branches. The stem diameter of the main stem was measured at the third node space with a micrometer (DI, measured in mm). 100-seed weight was obtained by weighing 100 seeds immediately after drying the seeds mixed in each block (100-SW, measured in g). The names of the 133 soybean landraces used in this study and the original phenotype data were listed in Additional file 3: Table S1.
Phenotypic data analysis
Statistical analyses of the above five traits were performed using the R software (http:/www.R-project.org) . Analysis of variance (ANOVA) was performed for all traits using a general linear model. A best linear unbiased prediction (BLUP) mixed model was fit to account for the year, trial and location effects, together with their interactions. The breeding value from the mixed model was also used for association mapping as phenotypic data. Broad-sense heritability was estimated using SAS version 9.4  according to the formula:
where σ2g is the genetic variance, σ2ge is the variance due to the G × E interaction, σ2e is the residual error, n is the number of environments and r is the number of replicates within the environment. The estimates of σ2g, σ2ge and σ2e were obtained from ANOVA by considering the environment as a random effect.
Analysis of SNP data, LD and population structure
The 133 soybean landraces had been genotyped with the 180 K AXIOM Soya SNP array previously . According to MAF > 0.05 and missing data < 10%, we detected a total of 82,187 SNPs that were used for association mapping. LD was calculated using 44,838 SNPs covering the 20 chromosomes by PLINK V1.07. The pairwise LD (r2) among SNPs was estimated using E (r2) = 1/ (1 + 4Nec) , where c represents the recombination rate of Morgan units and Ne represents the effective population size. The LD decay rate of the population was measured as the chromosomal distance when the average r2 decreased to half its maximum value . The STRUCTURE 2.3.4 software based on the Bayesian model was used to explore the population structure of the 133 soybean landraces based on 82,187 SNPs . A total of 82,187 SNPs were employed to conduct principal component analysis (PCA) and construct a neighbor-joining phylogenetic tree using PLINK V1.07 and PHYLIP. The TASSEL V5.2.15 software was used to calculate the kinship matrix, which represents the similarity of the different pairs of SNPs between genotypes.
The existence of a population structure and relative kinship in natural populations always results in a high level of spurious positives in association mapping . The population structure (Q), principal component analysis (PCA) and relative kinship (K) for the panel of 133 soybean landraces have been evaluated previously , and their effects on associations were evaluated with the following four statistical models: (1) the GLM model (PCA); (2) the GLM model (Q); (3) the MLM model (PCA + K); and (4) the MLM model (Q + K). The quantile-quantile plots of the estimated −log10(P) were displayed using the observed P values from marker-trait associations and the expected P values from the assumption that no associations exist between the markers and traits. The model with observed P values closest to the expected P values was chosen as the optimal model to control the confounding of population structure. Using the optimal statistical model, association analyses were carried out with 82,187 SNPs for all traits using the mean and BLUP values across multiple environments and within each environment . Genome-wide association study were performed by TASSEL V5.2.15. In this study, the markers above the significant association threshold of –log10(P) ≥ 3.5 was considered significantly associated with target traits.
Prediction of candidate genes
To reduce false positives, we defined the candidate SNPs that had significant associations in at least two environments. We selected significant SNPs with large effects to search candidate genes in their candidate regions. These candidate regions were defined by the average LD decay distance or the LD blocks. The functional annotations of genes located in the candidate regions were obtained from the SoyBase database (http://www.soybase.org/). Based on the soybean genomic annotations, potential candidate genes were predicted.
In addition, for potential candidate genes predicted for 100-SW, qRT-PCR was used to analyze the expression patterns in extreme materials with large phenotypic differences. According to the phenotypic data for 100-SW in the 2017JP and 2016DT environments, the ZDD06067 (24.36 ± 1.67 g) and ZDD20532 (4.55 ± 0.94 g) materials showed stable and large phenotypic differences. Therefore, we chose them as the extreme materials and cultivated in the field. Three replicate biological samples were collected in liquid nitrogen at four stages during soybean seed development (R3 (Pod 5 mm long at one of the four uppermost nodes on the main stem with a fully developed leaf), R5 (Seed 3 mm long in a pod at one of the four uppermost nodes on the main stem with a fully developed leaf), R6 (Pod containing a green seed that fills the pod cavity at one of the four uppermost nodes on the main stem with a fully developed leaf) and R7 (One normal pod on the main stem that has reached its mature pod color)), as defined by Fehr et al. (1971) . Total RNA was extracted from R3, R5, R6 and R7 seeds using an RNA Simple Total RNA kit (TIANGEN, China). cDNA was synthesized using a Prime Script™ RT Reagent Kit (TaKaRa, Japan) with a standard protocol. The qRT-PCR primers were designed with Primer Premier 5.0 and were listed in Additional file 4: Table S2. Gmβ-tubulin was selected as the control gene, and the qRT-PCR assays were conducted three times using a Light Cycler 480 instrument. The relative expression levels of the candidate genes were calculated using the comparative 2−△△CT method . Statistical analyses were performed with the Student’s t-test.
Availability of data and materials
The dataset and materials presented in the investigation are available from the supplementary tables and Additional file 3.
Quantitative trait locus
Number of nodes on main stem
Genome-wide association study
Single nucleotide polymorphisms
- h 2 :
Analysis of variance
Best linear unbiased prediction
General linkage model
Mixed linkage model
Principal component analysis
Real-time quantitative PCR
Moongkanna J, Nakasathien S, Novitzky WP, Kwanyuen P, Sinchaisri P, Srinives P. SSR markers linking to seed traits and total oil content in soybean. Thai J Agric Sci. 2011;44(4):233–41.
Liu W, Kim MY, Van K, Lee YH, Li H, Liu X, et al. QTL identification of yield-related traits and their association with flowering and maturity in soybean. J Crop Sci Biotechnol. 2011;14(1):65–70.
Cassman KG, Dobermann AR, Walters DT, Yang H. Meeting cereal demand while protecting natural resources and improving environmental quality. Annu Rev Environ Resour. 2003;28:315–58.
Van Ittersum MK, Cassman KG, Grassini P, Wolf J, Tittonell P, Hochman Z. Yield gap analysis with local to global relevance-a review. Field Crop Res. 2013;143:4–17.
Zhang H, Hao D, Sitoe HM, Yin Z, Hu Z, Zhang G, et al. Genetic dissection of the relationship between plant architecture and yield component traits in soybean (Glycine max) by association analysis across multiple environments. Plant Breed. 2015;134(5):564–72.
Pan Q, Xu Y, Li K, Peng Y, Zhan W, Li W, et al. The genetic basis of plant architecture in 10 maize recombinant inbred line populations. Plant Physiol. 2017;175(2):858–73.
Liang H, Li W, Wang H, Fang X. Genetic effects on seed traits in soybean. Acta Genet Sin. 2005;32(11):1199–204.
Sedbrook JC, Phippen WB, Marks MD. New approaches to facilitate rapid domestication of a wild plant to an oilseed crop: example pennycress (Thlaspi arvense L.). Plant Sci. 2014;227:122–32.
Fang C, Ma Y, Wu S, Liu Z, Wang Z, Yang R, et al. Genome-wide association studies dissect the genetic networks underlying agronomical traits in soybean. Genome Biol. 2017;18:161.
Kim KS, Diers BW, Hyten DL, Rouf Mian MA, Shannon JG, Nelson RL. Identification of positive yield QTL alleles from exotic soybean germplasm in two backcross populations. Theor Appl Genet. 2012;125(6):1353–69.
Yao D, Liu Z, Zhang J, Liu S, Qu J, Guan S, et al. Analysis of quantitative trait loci for main plant traits in soybean. Genet Mol Res. 2015;14(2):6101–9.
Lu X, Xiong Q, Cheng T, Li Q, Liu X, Bi Y, et al. A PP2C-1 allele underlying a quantitative trait locus enhances soybean 100-seed weight. Mol Plant. 2017;10(5):670–84.
Shim S, Kim MY, Ha J, Lee YH, Lee SH. Identification of QTLs for branching in soybean (Glycine max (L.) Merrill). Euphytica. 2017;213(9):225.
Xu Y, Crouch JH. Marker-assisted selection in plant breeding: from publications to practice. Crop Sci. 2008;48(2):391–407.
Panthee DR, Pantalone VR, Saxton AM, West DR, Sams CE. Quantitative trait loci for agronomic traits in soybean. Plant Breed. 2007;126(1):51–7.
Li D, Sun M, Han Y, Teng W, Li W. Identification of QTL underlying soluble pigment content in soybean stems related to resistance to soybean white mold (Sclerotinia sclerotiorum). Euphytica. 2010;172(1):49–57.
Dargahi H, Tanya P, Somta P, Abe J, Srinives P. Mapping quantitative trait loci for yield-related traits in soybean (Glycine max L.). Breed Sci. 2014;64(4):282–90.
Zhang X, Wang W, Guo N, Zhang Y, Bu Y, Zhao J, et al. Combining QTL-seq and linkage mapping to fine map a wild soybean allele characteristic of greater plant height. BMC Genomics. 2018;19:226.
Gupta PK, Rustgi S, Kulwal PL. Linkage disequilibrium and association studies in higher plants: present status and future prospects. Plant Mol Biol. 2005;57(4):461–85.
Korte A, Farlow A. The advantages and limitations of trait analysis with GWAS: a review. Plant Methods. 2013;9:29.
Atwell S, Huang YS, Vilhjálmsson BJ, Willems G, Horton M, Li Y, et al. Genome-wide association study of 107 phenotypes in Arabidopsis thaliana inbred lines. Nat. 2010;465(7298):627–31.
Chen W, Gao Y, Xie W, Gong L, Lu K, Wang W, et al. Genome-wide association analyses provide genetic and biochemical insights into natural variation in rice metabolism. Nat Genet. 2014;46(7):714–21.
Huang X, Wei X, Sang T, Zhao Q, Feng Q, Zhao Y, et al. Genome-wide association studies of 14 agronomic traits in rice landraces. Nat Genet. 2010;42(11):961–7.
Buckler ES, Holland JB, Bradbury PJ, Acharya CB, Brown PJ, Browne C, et al. The genetic architecture of maize flowering time. Sci. 2009;325(5941):714–8.
Li H, Peng Z, Yang X, Wang W, Fu J, Wang J, et al. Genome-wide association study dissects the genetic architecture of oil biosynthesis in maize kernels. Nat Genet. 2013;45(1):43–50.
Jia G, Huang X, Zhi H, Zhao Y, Zhao Q, Li W, et al. A haplotype map of genomic variations and genome-wide association studies of agronomic traits in foxtail millet (Setaria italica). Nat Genet. 2013;45(8):957–61.
Hwang EY, Song Q, Jia G, Specht JE, Hyten DL, Costa J, et al. A genome-wide association study of seed protein and oil content in soybean. BMC Genomics. 2014;15:1.
Bandillo N, Jarquin D, Song Q, Nelson R, Cregan P, Specht J, et al. A population structure and genome-wide association analysis on the USDA soybean germplasm collection. Plant Genome. 2015;8(3).
Wen Z, Tan R, Yuan J, Bales C, Du W, Zhang S, et al. Genome-wide association mapping of quantitative resistance to sudden death syndrome in soybean. BMC Genomics. 2014;15:809.
Han Y, Zhao X, Cao G, Wang Y, Li Y, Liu D, et al. Genetic characteristics of soybean resistance to HG type 0 and HG type 184.108.40.206.7 of the cyst nematode analyzed by genome-wide association mapping. BMC Genomics. 2015;16:598.
Vuong TD, Sonah H, Meinhardt CG, Deshmukh R, Kadam S, Nelson RL, et al. Genetic architecture of cyst nematode resistance revealed by genome-wide association study in soybean. BMC Genomics. 2015;16:593.
Zhang J, Song Q, Cregan PB, Nelson RL, Wang X, Wu J, et al. Genome-wide association study for flowering time, maturity dates and plant height in early maturing soybean (Glycine max) germplasm. BMC Genomics. 2015;16:217.
Chaudhary J, Patil GB, Sonah H, Deshmukh RK, Vuong TD, Valliyodan B, et al. Expanding omics resources for improvement of soybean seed composition traits. Front Plant Sci. 2015;6:1021.
Wen Z, Boyse JF, Song Q, Cregan PB, Wang D. Genomic consequences of selection and genome-wide association mapping in soybean. BMC Genomics. 2015;16(1):671.
Zhang J, Song Q, Cregan PB, Jiang GL. Genome-wide association study, genomic prediction and marker-assisted selection for seed weight in soybean (Glycine max). Theor Appl Genet. 2016;129(1):117–30.
Diers BW, Specht J, Rainey KM, Cregan P, Song Q, Ramasubramanian V, et al. Genetic Architecture of Soybean Yield and Agronomic Traits. G3 (Bethesda). 2018;8(10):3367–75.
Copley TR, Duceppe MO, O'Donoughue LS. Identification of novel loci associated with maturity and yield traits in early maturity soybean plant introduction lines. BMC Genomics. 2018;19:167.
Assefa T, Otyama PI, Brown AV, Kalberer SR, Kulkarni RS, Cannon SB. Genome-wide associations and epistatic interactions for internode number, plant height, seed weight and seed yield in soybean. BMC Genomics. 2019;20(1):527.
Zhao X, Li W, Zhao X, Wang J, Liu Z, Han Y, et al. Genome-wide association mapping and candidate gene analysis for seed shape in soybean (Glycine max)[J]. Crop Pasture Sci. 2019;70(8):684–93.
Qi Z, Song J, Zhang K, Liu S, Tian X, Wang Y, et al. Identification of QTNs controlling 100-seed weight in soybean using multilocus genome-wide association studies. Front Genet. 2020;11:689.
Li X, Zhang X, Zhu L, Bu Y, Wang X, Zhang X, et al. Genome-wide association study of four yield-related traits at the R6 stage in soybean. BMC Genet. 2019;20:39.
Oz M, Karasu A, Goksoy AT, Turan ZM. Interrelationships of agronomical characteristics in soybean (Glycine max) grown in different environments. Int J Agric Biol. 2009;11(1):85–8.
Asanome N, Ikeda T. Effect of branch direction's arrangement on soybean yield and yield components. J Agron Crop Sci. 2010;181(2):95–102.
Evans LT, Dunstone RL. Some physiological aspects of evolution in wheat. Aust J Biol Sci. 1970;23(4):725–42.
Sun D, Li W, Zhang Z, Chen Q, Ning H, Qiu L, et al. Quantitative trait loci analysis for the developmental behavior of soybean (Glycine max L. Merr.). Theor Appl Genet. 2006;112(4):665–73.
Mian MA, Bailey MA, Tamulonis JP, Shipe ER, Carter TE, Parrott WA, et al. Molecular markers associated with seed weight in two soybean populations. Theor Appl Genet. 1996;93(7):1011–6.
Han Y, Li D, Zhu D, Li H, Li X, Teng W, et al. QTL analysis of soybean seed weight across multi-genetic backgrounds and environments. Theor Appl Genet. 2012;125(4):671–83.
Pathan SM, Vuong T, Clark K, Lee JD. Genetic mapping and confirmation of quantitative trait loci for seed protein and oil contents and seed weight in soybean. Crop Sci. 2013;53(3):765–74.
Lee SH, Park KY, Lee HS, Boerma HR. Genetic mapping of QTLs conditioning soybean sprout yield and quality. Theor Appl Genet. 2001;103(5):702–9.
Kato S, Sayama T, Fujii K, Yumoto S, Kono Y, Hwang TY, et al. A major and stable QTL associated with seed weight in soybean across multiple environments and genetic backgrounds. Theor Appl Genet. 2014;127(6):1365–74.
Shikanai T. RNA editing in plant organelles: machinery, physiological function and evolution. Cell Mol Life Sci. 2006;63(6):698–708.
Bogamuwa S, Jang JC. The Arabidopsis tandem CCCH zinc finger proteins AtTZF4, 5 and 6 are involved in light-, abscisic acid- and gibberellic acid- mediated regulation of seed germination. Plant Cell Environ. 2013;36(8):1507–19.
Chen M, Du X, Zhu Y, Wang Z, Hua S, Li Z, et al. Seed fatty acid reducer acts downstream of gibberellin signalling pathway to lower seed fatty acid storage in Arabidopsis. Plant Cell Environ. 2012;35(12):2155–69.
Xiong L, Gong Z, Rock CD, Subramanian S, Guo Y, Xu W, et al. Modulation of abscisic acid signal transduction and biosynthesis by an Sm-like protein in Arabidopsis. Dev Cell. 2001;1(6):771–81.
Labate MTV, Ko K, Ko ZW, Pinto LS, Real MJ, Romano MR, et al. Constitutive expression of pea Lhcb1-2 in tobacco affects plant development, morphology and photosynthetic capacity. Plant Mol Biol. 2004;55(5):701–14.
Qiu L, Li Y, Guan R, Liu Z, Wang L. Establishment, representative testing and research progress of soybean core collection and mini core collection. Acta Agronomica Sinica (in Chinese). 2009;35(4):571–9.
Team CR. R: a language and environment for statistical computing. Computing. 2014;14:12–21.
Institute S. Base SAS 9.4 procedures guide: statistical procedures. Chapter. 2014.
Sved JA. Linkage disequilibrium and homozygosity of chromosome segments in finite populations. Theor Popul Biol. 1971;2(2):125–41.
Yu J, Pressoir G, Briggs WH, Vroh BI, Yamasaki M, Doebley JF, et al. A unified mixed-model method for association mapping that accounts for multiple levels of relatedness. Nat Genet. 2006;38(2):203–8.
Cai D, Xiao Y, Yang W, Ye W, Wang B, Younas M, et al. Association mapping of six yield-related traits in rapeseed (Brassica napus L.). Theor Appl Genet. 2014;127(1):85–96.
Fehr WR, Caviness CE, Burmood DT, Pennington JS. Stage of development descriptions for soybeans, Glycine Max (L.) Merrill. Crop Sci. 1971;11(6):929–31.
Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods. 2001;25(4):402–8.
We thank Dr. Jianbo He for providing technical assistance in bioinformatics and for his critical review of the manuscript.
This research was supported by National Key R&D Program of China (2017YFD0102002), the National Natural Science Foundation of China (Grant No.32072082), the Province Key R & D Program of Jiangsu (BE2019376, BE2019425), the Fundamental Research Funds for the Central Universities (KYZ201811, KYT201801), Modern Agro-industry Technology Research System of China (CARS-04-PS10), the National Natural Science Foundation of China (Grant No.31301343), Program for Changjiang Scholars and Innovative Research Team in University (PCSIRT_17R55), Cyrus Tang Innovation Center for Seed Industry and Jiangsu Collaborative Innovation Center for Modern Crop Production (JCIC-MCP). The funding bodies played no role in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Average linkage disequilibrium (LD) decay rate estimated among co-chromosome SNPs.
Population structure analysis of 133 soybean landraces.
Phenotypic data of the four plant architecture-related traits and 100-SW in the 133 soybean landraces.
Primer sequences for 100-seed weight candidate genes in soybean.
About this article
Cite this article
Zhang, X., Ding, W., Xue, D. et al. Genome-wide association studies of plant architecture-related traits and 100-seed weight in soybean landraces. BMC Genom Data 22, 10 (2021). https://doi.org/10.1186/s12863-021-00964-5
- Soybean (Glycine max (L.) Merr.)
- Plant architecture-related traits
- 100-seed weight
- Candidate genes
