The Prader-Willi syndrome murine imprinting center is not involved in the spatio-temporal transcriptional regulation of the Necdin gene
BMC Genetics volume 6, Article number: 1 (2005)
The human Prader-Willi syndrome (PWS) domain and its mouse orthologue include a cluster of paternally expressed genes which imprinted expression is co-ordinately regulated by an imprinting center (IC) closely associated to the Snurf-Snrpn gene. Besides their co-regulated imprinted expression, two observations suggest that the spatio-temporal expression of these genes could also be co-regulated. First, the PWS genes have all been reported to be expressed in the mouse nervous system. Second, Snurf-Snrpn and its associated IC are the most ancient elements of the domain which later acquired additional functional genes by retrotransposition. Although located at least 1.5 megabases from the IC, these retroposons acquired the same imprinted regulation as Snurf-Snrpn. In this study, we ask whether the IC, in addition to its function in imprinting, could also be involved in the spatio-temporal regulation of genes in the PWS domain.
We compared the expression pattern of Snurf-Snrpn and C/D-box small nucleolar RNAs (snoRNAs) MBII-85 and MBII-52 to the expression pattern of the two evolutionary related retroposons Ndn and Magel2, in the developing mouse embryo. We show that these genes have highly similar expression patterns in the central nervous system, suggesting that they share a common central nervous system-specific regulatory element. Among these genes, Ndn and Magel2 display the most similar expression patterns. Using transgenic mice containing the Ndn and Magel2 genes, we show that the transgenic Ndn gene whereas not imprinted is correctly expressed. Search for DNase I hypersensitive sites in the Ndn-Magel2 genomic region and comparative genomic analyses were performed in order to identify potential transcriptional cis-regulatory elements.
These results strongly suggest that paternally expressed genes of the PWS domain share a common central nervous system-specific regulatory element. We proposed that this regulatory element could co-localize with the IC. However, we demonstrate that the IC, if required for imprinted regulation, is not involved in the spatio-temporal regulation of distantly located retrotransposed genes such as the Ndn gene in the PWS domain.
Genomic imprinting in mammals is a process that leads to the preferential mono-allelic expression of specific genes in diploid cells, depending on whether they are inherited from the sperm or from the oocyte. To date, approximately 70 mammalian imprinted genes have been identified which map to at least 11 regions of the mouse genome . Most imprinted genes are therefore located in clusters, which are generally conserved between human and mouse. For some of these clusters, coordinate imprinted gene regulation has been shown to be controlled by imprinting centers (IC) . Imprinted genomic regions from the two parents are differentially marked by heritable epigenetic modifications including DNA methylation and histone acetylation and/or methylation. These epigenetic modifications or imprints are established at least for some of them in the germ line of either parent .

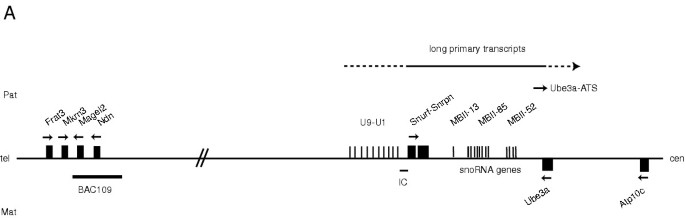

The Prader-Willi syndrome (PWS) domain on human chromosome 15q11-q13 and its ortholog on mouse chromosome 7C-D1 are large chromosomal domains containing paternally expressed genes . PWS results from the loss of expression of several of them including SNURF-SNRPN, NDN, MAGEL2, MKRN3 and the C/D-box small nucleolar RNAs(snoRNAs). In humans, mini-deletions, upstream the SNURF-SNRPN transcriptional unit, have led to the characterization of an IC which coordinates their imprinted expression . One sub-region of this IC defined as the shortest region of deletion overlap in PWS patients (PWS-SRO) and encompassing the SNURF-SNRPN promoter, has been shown to be required for maintaining the paternal imprint [5, 6]. Its deletion in the germ line or post-zygotically on the paternal chromosome leads to silencing of all paternally expressed genes of the PWS domain [4, 6]. In mice, although the Snrpn promoter is not required for genomic imprinting , deletion of a 35 kb region including 16 kb of sequences upstream Snurf-Snrpn exon 1 to Snurf-Snrpn exon 7 unit also leads to silencing of the paternally expressed genes, indicating that both the position of the IC and its role in the coordinate imprinted expression of genes is conserved between human and mouse [8, 9].
Recently, examination of tissue-specific pattern of mRNA expression at a genomic scale allowed the identification of several chromosomal regions harbouring tissue-specific co-regulated genes defined as regions of correlated transcription (RCTs) . Noticeable, some of these RCTs overlap with known imprinted loci and it suggests that transcriptional regulatory elements controlling imprinted expression might also regulate tissue-specific expression. Therefore, one might hypothesize that this type of regulation is applied at the PWS domain. Two arguments support this hypothesis. First, all the murine orthologues of the PWS genes have been reported to be expressed in the developing nervous system . Second, Nicholls proposed an evolutionary model for the origin of the human and mouse PWS domains [12, 13]. In this model, the Snurf-Snrpn locus and its associated IC would be the ancestral imprinted transcriptional unit of the domain. The other genes, which are intronless, would have later and sequentially been acquired by retrotransposition and adopted the same imprinted regulation. Altogether, these data suggest that a spatio-temporal co-regulation of PWS genes could exist and have been acquired through the evolution of the domain. Thus, it is tempting to speculate that the cis-regulatory element(s) initially involved in the spatio-temporal regulation of the Snurf-Snrpn locus might influence the spatio-temporal regulation of retrotransposed genes in the PWS region. The IC could be a good candidate to play this role.
In this study, we investigate this hypothesis. First, we compared the expression pattern of the Snurf-Snrpn, MBII-85, MBII-52, Ndn and Magel2 in the developing mouse embryo. We show that their expression in the embryo is restricted to neural tissues and that these genes display strikingly similar expression patterns in the central nervous system. Second, we created transgenic mice with a BAC containing the Ndn and Magel2 genes. We showed that the Ndn transgene is not imprinted but is correctly expressed in the developing embryo. These results demonstrate that if the IC is required for imprinted regulation, it is not involved in the Ndn spatio-temporal regulation. Finally, since we have shown an almost identical spatio-temporal expression profile of Ndn and Magel 2 in the developing embryo, it suggests that these two genes might share common cis-acting regulatory elements which should be present in the BAC transgene. We therefore searched for DNaseI hypersensitive sites in the Ndn-Magel2 genomic region and performed comparative genomic analyses in order to identify potential transcriptional cis-regulatory elements.
Nervous system tissue-specific expression of mouse PWS genes in the embryo
In order to determine if mouse PWS genes might be transcriptionally co-regulated, we compared the expression profiles of Snurf-Snrpn, MBII-85, MBII-52, Ndn and Magel2 by in situ hybridization in the developing mouse embryo (Fig. 1, 2 and 3). In the 10.5 and 13.5 mouse embryos, Snurf/Snrpn, MBII-85, MBII-52, Ndn and Magel2 are almost exclusively expressed in the developing nervous system, and although expressed at different levels, they display strikingly similar expression patterns in the central nervous system (brain and spinal chord). As previously reported for Ndn , they are predominantly expressed in all the ventral parts of the neural tube, mostly or even exclusively in marginal areas where differentiating neurons reside. In the peripheral nervous system, Ndn and Snurf/Snrpn are both expressed at high levels in cranial and dorsal root ganglia, sympathetic and parasympathetic ganglia, structures in which MBII-85, MBII-52 and Magel2 trancripts are expressed at much lower levels or not at all (Fig. 2 and 3). Magel2 when compared to Ndn, Snurf-Snrpn and MBII-85/ -52 seems to have a more highly restricted expression domain. In the 12.5 embryo, Magel2 transcripts are detected at high levels and predominantly in the hypothalamus (Fig. 3). Careful examination shows that although found at low or very low levels, Magel2 transcripts are present in similar domains as the four other PWS genes studied. Ndn and Magel2 also share expression domains in some non-neuronal tissues such as in the muscles (skeletal muscles and tongue) and in some non-neuronal neural crest cells derived structures such as the branchial arches (Fig. 3; data not shown). Magel2 transcripts are detected at very low levels in the dorsal root ganglia and not detected in cranial ganglia.
In conclusion, all the PWS genes that we studied were expressed mainly (Ndn and Magel2) or even exclusively (Snurf-Snrpn, MBII-85/-52) in the mouse developing nervous system at E12.5 and E13.5, with strikingly similar identical patterns in the central nervous system (brain and spinal chord). More divergent expression patterns were observed in the peripheral nervous system (cranial and dorsal root ganglia, sympathetic ganglia), some genes being expressed at high levels (Ndn and Snurf-Snrpn) and the others being expressed at low levels or not at all (MBII-85, MBII-52 and Magel2). Our in situ hybridization data suggests the presence in the PWS domain of a central nervous system-specific neural element which coordinates the PWS genes expression.
In order to determine if the spatio-temporal transcriptional regulation of PWS genes is dependant upon the IC, we initiated BAC transgenic analyses and chose to investigate the transcriptional regulation of the Ndn gene outside its natural genomic context. Since Ndn and Magel2 are co-regulated and the intergenic region between these two genes is around 30 kb only, we chose a bacterial artificial chromosome (BAC 109) containing both genes to generate transgenic mice (Fig. 4A). Three transgenic male founders were obtained and crossed with C57BL/6 females. Only one male transmitted the BAC109 transgene to its progeny and gave rise to the transgenic line 92 (Tg92) described in this study. The presence of BAC vector sequences allowed us to discriminate the transgenic from the wild type DNA. Genomic DNA from Tg92 mice was thoroughly analyzed by PFGE, Southern blot and PCR, to precisely determine the structure and the number of copy of the integrated transgene (Fig. 4A, data not shown). The transgene integrated in one full copy along with a truncated copy containing the whole 5' region upstream Ndn up to the Ndn promoter (Fig. 4A), near the centromeric region of chromosome 2, as determined by DNA FISH analysis (data not shown).
Transgenic Ndn expression analysis was performed by Northern blot hybridization, on adult tissues of mice inheriting the transgene either maternally or paternally, on an Ndn null background (Tg92mat-Ndn+/-pat and Tg92pat-Ndn+/-pat, respectively). Whether maternally or paternally inherited, the transgenic Ndn gene was expressed with the same tissue specificity as the endogenous Ndn gene (Fig. 4B). Transgenic Ndn transcripts were only detected in the brain, although at a slightly lower level than endogenous transcripts. It should be noted that no transgenic Ndn gene expression was detected in muscle, a tissue in which endogenous Ndn transcripts are detected although at low levels as compared to the brain. In situ hybridization experiments were then performed on transgenic embryos carrying a paternal deletion of the Ndn allele (Tg92mat-Ndn+/-pat) and wild type mouse embryos, to compare the transgenic and endogenous profile of Ndn expression. Transgenic Ndn transcripts were detected in embryos from E10.5 as endogenous Ndn transcripts, and in the same structures, namely the central and peripheral nervous system (Fig. 5), at a slightly lower level in transgenic embryos as it was noted in transgenic adult tissues. No transgenic Ndn expression was detected in the dermo-myotome, the muscles or the tongue, although endogenous Ndn transcripts were detectable in these tissues (Fig. 5: H and I). Since Magel2 null mice were not available, Magel2 imprinting and expression from the BAC109 transgene could not be analyzed. However, no ectopic site of Magel2 expression was noted during embryogenesis.
Since the transgenic Ndn gene was not imprinted, methylation studies of the transgenic Ndn promoter region and CpG island were omitted.
Search for Ndn transcriptional regulatory elements
Since Ndn was correctly expressed at least in the nervous system from the BAC transgene, Ndn regulatory elements must be present in the BAC109 genomic sequences. With the increasing availability of genomic sequence and the recent development of powerful global alignment algorithms, interspecies genomic sequence comparisons are becoming an efficient mean to identify conserved non-coding sequences (CNS) which regulatory potential can further be assessed experimentally [15, 16]. However, since the whole human and mouse PWS domains are rather highly conserved which might render difficult to discriminate between functional and non functional CNS, we first undertook an experimental approach. We analyzed the chromatin DNase I sensitivity of the genomic sequences present in the BAC transgene. In the adult brain, hybridization of Bgl II- or Bam HI-cut DNA with a series of probes described in Fig. 1 led to the characterization of several major DNaseI hypersensitive sites associated to the Ndn gene (HS1/2, HS3 and 4) and of one site upstream the Magel2 gene (HS5) (Fig. 6). The probes used allowed a systematic analysis of the Ndn/Magel2 genomic sequences present in the BAC transgene, from -17.5 kb upstream the Ndn gene to17 kb downstream the Magel2 gene. Additional upstream Ndn sequences which were present in the BAC could not be analyzed since their sequences are not yet available.
Hybridization of Bgl II-cut DNA with probe 1 revealed two adjacent (~50–70 bp apart) and strong DNase I hypersensitive sites (HS1 and HS2) in the Ndn promoter region of the paternal allele (Fig. 6B). Hybridization with probe 2 revealed two additional but weaker DNase I hypersensitivity sites on the paternal allele (HS3 and HS4), localized in the Ndn 5'UTR and at the beginning of the coding region, respectively. In contrast to the paternal allele, the maternal allele was highly resistant to DNase I digestion. In the adult kidney, a tissue in which Ndn is not expressed, the two parental alleles were highly and almost equally resistant to DNase I digestion (data not shown). The presence of DNase I hypersensitive sites HS1/2, HS3 and HS4 is therefore closely linked to the transcriptional activity of the Ndn gene since they were present on the paternal allele and only in Ndn-expressing tissues.
Hybridization of brain BamH 1-cut DNA with probe 6 or Bgl II-cut DNA with probes 7 and 8 revealed one relatively strong DNase I hypersensitive site (HS5) 3.5 kb upstream the Magel2 gene, which was present on both parental alleles and co-localized with a polymorphic Bgl II site present on the CAST/Ei allele. HS5 was localized 1 kb upstream newly isolated full length Magel2 ESTs (AK086725, AK082944, AK086725; see Fig. 6A) which initiate around 2.5 kb 5' to the described Magel2 mRNA (NM013779) . HS5 was present on both maternal and paternal alleles and in tissues in which Magel2 and/or Ndn are not expressed such as the adult kidney (data not shown) which suggests that this DNase I hypersensitive site is not linked to the transcriptional activity of these two genes.
No prominent DNase I hypersensitive site were detected in the Ndn-Magel2 intergenic region (excepted HS5). Multiple faint hybridization signals could however be detected with probes 3 and 4 on Bgl II-cut DNA (data not shown) and with probe 5 on BamH 1-cut DNA, revealing regions of low DNase I hypersensitivity in the Ndn-Magel2 intergenic region (Fig. 6B). Finally, hybridization of probe 10 on brain BamH 1-cut DNA allowed the detection of a lower hybridization band, revealing one or potentially two DNase I hypersensitive sites (HS6a or/and HS6b). We were not able to precisely localise the HS6 site(s) as well as its (their) parental origin.
We next mapped HS1 to 6 DNase I hypersensitive sites on a mouse/human sequence alignment (Fig. 6-C). The available mouse sequences used for this comparison start from -17.5 kb upstream the Ndn gene to the Magel2 extremity of BAC109. Several CNS defined as orthologous sequences greater than 100 bp and greater than 70% identity  were found and mainly gathered into three regions: upstream the Ndn gene (region A), in the intergenic Ndn-Magel2 region (region B) and in a 2.8 kb upstream the Magel2 gene (region C). None of the hypersensitive sites identified in this study mapped to region A, B or C. HS1/2 which are closely linked to the transcriptional activity of the Ndn gene are localized in a CNS immediately upstream the Ndn gene. HS5 co-localized to an isolated CNS localized 0.7 kb upstream the highly conserved C region and around 1 kb upstream the newly described full length Magel2 ESTs. However, the functional significance of HS5 in the Magel2 and/or Ndn gene transcriptional regulation remains to be determined since this site was neither allele nor tissue-specific. It should be noted that there was almost no conservation of sequence in the region downstream the Magel2 gene. In contrast, the intergenic Ndn-Magel2 region was relatively well conserved and regions of low DNase I hypersensitivity were detected in this region which might have functional importance.
Coordinated central nervous system-specific expression of PWS genes
Study and comparison of Snurf-Snrpn, MBII-85/-52 snoRNAs, Ndn and Magel2 expression profiles brought new information on the transcriptional regulation of these genes. Snurf-Snrpn, the snoRNAs MBII-52 and MBII-85 and the distantly located Ndn and Magel2 genes were expressed in the mouse developing nervous system at E10.5 and E13.5 with strikingly similar patterns in the central nervous system.
More divergent expression patterns were observed in the peripheral nervous system and non-neuronal tissues.
Accordingly, Snurf-Snrpn, MBII-85 and MBII-52 snoRNAs were exclusively expressed in the developing nervous system, and in identical structures in the central nervous system. Marked differences of expression between Snurf-Snrpn and the snoRNAs were found in cranial and dorsal root ganglia, structures in which Snurf-Snrpn was highly expressed whereas the snoRNAs were expressed at very low levels (MBII-85) or not at all (MBII-52). These results reinforce the proposal that the snoRNAS derive from the processing of long primary transcripts initiated at the U exons, upstream Snurf-Snrpn  (Le Meur et al., submitted). It is interesting to note that Snurf-Snrpn was previously reported to be ubiquitously expressed in adult tissues , whereas we found it to be exclusively expressed in the nervous system at E10.5 and 13.5 of mouse embryogenesis.
As previously reported [14, 11], Ndn and Magel2 mRNAs were detected almost exclusively in the nervous system of the mouse embryo from E9.5/10.5 onwards, and although Magel2 transcripts were detected at much lower levels than Ndn transcripts, these two genes displayed almost identical expression patterns in the central nervous system (brain and spinal chord). Particularly striking was their identical pattern of expression in the E10.5 embryo. At later developmental stages, Magel2 expression domain became more restricted but remained included in Ndn expression domain. Magel2 transcripts were however detected at very low levels in almost all the structures in which Ndn was expressed, including non neuronal structures such as the mandibular component of the first branchial arch, the tongue and the muscles. Magel2 transcripts have been reported to be particularly instable due to the presence of AU-rich elements (ARE) in their 3' untranslated region  and this could explain why they were detected at such low levels.
Our expression analysis in the mouse embryo indeed suggests the existence of a central nervous system-specific neural regulatory element coordinating the PWS genes expression. Ndn and Magel2, specifically, could share additional regulatory elements.
Co-expression of PWS genes and the IC
We further emitted the hypothesis that the central nervous system-specific regulatory element could be physically associated to the PWS IC because of the proposed evolutionary history of the PWS domain and because the IC is involved in coordinating long range chromatin modifications leading to imprinted expression of genes in the whole domain. The Snurf-Snrpn locus with its associated IC has been proposed to be the most ancestral transcriptional unit of the domain [12, 13]. Other PWS genes (Ndn, Magel2, Mkrn3 and Frat3) would have later been acquired by retroposition and/or local cis-duplication of retroposed genes and would have adopted the same transcriptional regulation as the Snurf-Snrpn transcriptional unit. Unless retroposons arise from reverse-transcriptase-mediated processing of aberrant or alternative transcripts including endogenous promoter elements, their functionality is dependent upon regulatory elements present at their site of insertion. Retroposons in the PWS region could have therefore adopted the Snurf-Snrpn regulation both for imprinted and spatio-temporal expression. Finally, the fact that paternal deletions of the IC abolish the expression of all the PWS genes [8, 7] also suggests a possible intertwining between regulatory elements controlling both imprinting and spatio-temporal expression.
Our study did not however confirm that the IC might coordinate the spatio-temporal expression of PWS genes. Our transgenic analysis clearly showed that Ndn does not rely on the IC for its spatio-temporal expression. Ndn was correctly regulated from the BAC transgene lacking the IC both in the developing embryo and in adult tissues. These results demonstrate that the cis-regulatory sequences involved in both the developmental and tissue-specific expression of Ndn were present in the transgene and were not associated to the IC. The fact that the IC was not involved in the spatio-temporal regulation of the Ndn gene does not however exclude its putative involvement in the spatio-temporal regulation of the Snurf-Snrpn transcriptional unit. No transcriptional regulatory elements or sequences excepted those involved in the imprinted expression  have yet been characterized in the Snurf-Snrpn transcriptional unit.
Search for Ndn and Magel2 regulatory elements
Since the cis-regulatory sequences involved in both the developmental and tissue-specific expression of Ndn were present in the transgene and since we showed that Ndn and Magel2 expression was coordinated both in the central nervous system and in some non neuronal tissues of the mouse embryo, we searched for Ndn and Magel2 regulatory elements in the BAC109 genomic sequences. Ndn and Magel2 are two evolutionary related retrotransposons, which belong to the MAGE D gene family . Phylogenetic studies could not predict whether these two genes arose from two distinct retroposition events or whether they arose from the initial retroposition of one of these two genes followed by a cis-duplication event (Blanc M., unpublished observations). Their close genomic localisation, within 30 kb in the mouse genome, would however be in favour of this second hypothesis. The co-expression of Ndn and Magel2 could therefore result from regulatory elements sharing and/or duplication. Intraspecies genomic comparisons of mouse or human Ndn and Magel2 upstream sequences did not reveal any significant homology which does not exclude the possibility that one of these two genes arose by a cis- duplication. Our experimental search for regulatory elements elements in the Ndn/Magel2 genomic sequences was limited to sequences available in the databases and was therefore not exhaustive. However, we found several DNase I hypersensitive sites (HS1/2, HS3 and 4) linked to Ndn transcriptional activity and associated to the Ndn promoter. Previous transgenic studies in the zebrafish using a series of hybrid transgenes containing various mouse Ndn promoter sequences associated to the reporter LacZ gene suggested that the mouse Ndn promoter from -845 bp to +63 bp functioned in the zebrafish embryo in a temporal, spatial and tissue-specific manner . In particular, a cis-acting element driving the neuronal-specific expression was located into an 87 bp sequence from -173 to -87 bp of the Ndn gene which exactly co-localizes with HS1/2. No identified transcriptional factor brain-specific binding site could however be identified in this sequence. Deletion of promoter sequences in Ndn-KO mutant mice  did not affect Magel2 transcriptional regulation (Watrin F., data not shown) which suggests that if the coordinated Magel2 and Ndn expression results from the sharing of a putative enhancer, this enhancer is not associated to Ndn promoter sequences.
The human NDN gene has been shown to be expressed in a larger panel of tissues than the mouse Ndn gene [23, 24] but our data suggest that these two genes might have similar expression profiles in the nervous system  (data not shown). An interspecific (mouse/human) comparison of available genomic sequences was therefore performed in order to identify genomic sequences involved in central nervous system expression. This comparison did not allow the identification of such sequences but nevertheless brought some new information on the Magel2 transcriptional unit, showing the existence of a 2.5 kb highly conserved region upstream the described Magel2 gene. Identification of full length embryonic and brain specific Magel2 ESTs including this region further confirms that this region belong to the Magel2 transcriptional unit.
In view of our results, expression of the Ndn and Magel2 genes could be coordinated by a common enhancer distinct from Ndn promoter sequences and which could be localized in sequences upstream the Ndn gene that we could not analyze. It should be noted that the Ndn/Magel2 intergenic region was rather well conserved and harbored several regions of low DNase I hypersensitivity which might deserve further investigation.
The transgene is not imprinted
As expected, our transgene which was physically separated from the IC was not imprinted. When outside of its natural genomic context, Ndn was expressed from either parental allele. Whether particular genomic sequences around or associated to Ndn such as the 5' CpG island are necessary to respond to the primary imprinting signal established at the IC remains to be determined. An imprinted brain-specific Ndn non coding (nc) antisense RNA (PX00010K13; DDBJ accession no. AK14392) initiated in (or including) the 5' part of Ndn coding sequence and extending in Ndn upstream sequences has recently been described and according to the authors, this antisense transcript could be involved in the imprinted expression of Ndn mRNA . This transcript could potentially be transcribed from our transgene. We did not detect this antisense nc transcript in transgenic brain RNA which is coherent with the fact that the transgene was not imprinted. However, we did not detect it in wild type brain either (data not shown). In one of the mouse models in which part of the Ndn CDS -and therefore the region in which the antisense transcript is initiated- was deleted , the LacZ gene which replaced the Ndn was monoallelically expressed, further strengthening an absence of role of this hypothetical antisense transcript in Ndn imprinting.
Our analysis strongly suggests the existence of a central nervous system-specific regulatory element which would coordinate expression of the PWS genes in the developing mouse embryo and we proposed that this element could be associated to the IC. However, our transgenic studies clearly demonstrate that when physically separated from the IC, a transgenic Ndn gene, although not imprinted anymore, can still be correctly expressed in the developing nervous system of the mouse embryo. The BAC transgene therefore contained the regulatory elements needed for the spatio-temporal expression of Ndn (and most likely Magel2) in the developing nervous system. Three hypotheses can be made: 1) the PWS genes co-expression that we observed is incidental, 2) the element(s) localised in genomic sequences surrounding the Ndn/Magel2 and which regulate(s) Ndn (and Magel2) expression could also regulate other PWS genes, 3) several central nervous system-specific regulatory elements resulting from duplication events might be present in the PWS domain. The evolutionary history of the PWS domain is more in favour of the third hypothesis but will need further investigations to be confirmed.
Adult C57BL/6 and C57BL/6 X CBA mice were purchased from IFFA CREDO, and M. musculus castaneus (CAST/Ei) male mice from the Jackson Laboratory. Mice carrying an Ndn null mutation on a 129/Sv genetic background  and transgenic Tg92 mice were bred in-house.
In situ hybridization
All in situ hybridization experiments for the study of PWS genes expression were performed on C57BL/6 embryos. In situ hybridization was performed on 14 μM paraformaldehyde-fixed cryosections with antisens digoxigenin-labeled riboprobes. Sections were washed in 1X PBS, treated with RIPA buffer (150 mM NaCl, 1% NP-40, 0.5% Na deoxycholate, 0.1% SDS, 1 mM EDTA, 50 mM Tris pH 8), post-fixed in paraformaldehyde, acetylated and further washed in PBST before the hybridization step. All hybridization and post-hybridization washes were performed at 70°C. Hybridization was performed in 50% formamide, 5X SSC, 5X Denhart's solution (Sigma), 0.5 mg/ml herring sperm DNA, 0.25 mg/ml yeast RNA. Washes were performed in 50% formamide, 2X SSC, 0.1% Tween 20. Digoxigenin labelling was detected using anti-digoxigenin Fabs (Roche Biochemicals) coupled to alkaline phosphatase and NBT/BCIP (Sigma). The Ndn riboprobe (290 bp) hybridizes to the 3' UTR of the Ndn mRNA (nt 2130 to 2420; accession number D76440). The Magel2 riboprobe (318 bp) hybridizes to the 3' part of the Magel2 ORF (nt 3730 to 4048; accession number AK086725). The snoRNAs MBII-85 and MBII-52 riboprobes were synthesized from plasmids given by J. Cavaillé. The Snurf riboprobe (277 bp) hybridizes to U/Snurf-Snrpn transcripts and recognizes sequences from the 3' end of the Snurf exon 1 to the 3' end of the Snurf exon 3 (nt 3639 to nt 77687; accession number AF332579).
Generation and breeding of transgenic mice
BAC109 was isolated by hybridization of mouse bacterial artificial (BAC) high-density membranes (Research Genetics, Inc, USA) with a genomic Ndn probe, and contains a 103 kb Not I insert comprising the Ndn and Magel2 genes. The Ndn gene is localized in the center of BAC109, the Eag I intragenic site being situated 54 and 50 kb away from the vector Not I sites and the 3' extremity of the Magel2 gene is localized 17 kb from one of the vector Not I site (Fig. 3). Unlinearized cesium chloride gradient purified BAC109 DNA was resuspended in injection buffer (10 mM Tris-HCl pH 7.5, 0.1 mM EDTA pH 8.0, 100 mM NaCl, 30 μM spermine, 70 μM spermidine) at 3 ng/μl and microinjected in the pronucleus of C57BL/6 X CBA fertilized eggs. Founders were identified by Southern blot analysis using a PCR probe amplified from the pBeLoBAC11 vector and a Bgl II digestion, and subsequently bred on a C57BL/6 genetic background. Transgene copy number and integrity were determined by PFGE and Southern blot analysis. The 5' and 3' probes used in the Southern blot analysis correspond to the probes 1 and 2 described in the "DNase I Hypersensitivity Mapping" section. Transgenic Ndn expression analysis (Northern blot and in situ hybridization) was performed on embryos or adult mice inheriting the transgene either paternally or maternally, on a Ndn null background. These embryos or adult mice were obtained by mating transgenic males carrying the Ndn null mutation to wild type C57BL/6 females (Tg92pat-Ndn+/-pat) or transgenic females to males carrying the Ndn null mutation (TgBAC92mat-Ndn+/-pat).
DNase I hypersensitivity mapping
Tissues were dissected either from inter-specific F1 hybrids between M. musculus C57BL/6 females and M. musculus castaneus males (B6 x CAST/Ei) F1 or from inbred C56BL/6 mice (B6). Nuclei were isolated from adult mouse tissues as described . Nuclei were resuspended in DNase I digestion buffer (0.3 M sucrose, 60 mM KCl, 15 mM NaCl, 5 mM MgCl2, 0.1 mM EGTA, 15 mM Tris-HCl pH 7.5, 1 mM DTT, 0.2 mM PMSF, 0.4 mM CaCl2, 5% glycerol) at a concentration of 5.107 nuclei/ml. Increasing amounts of DNase I (bovine pancreas grade I; Boehringer Mannheim) from 0 to 100 units diluted in 5 μl of DNase I digestion buffer were added to 95 μl aliquots of nuclei. After a 1 min incubation at 25°C, the digestion was stopped by addition 100 μl of stop solution (20 mM EDTA, 1% SDS, 0.1 mg/ml proteinase K) and samples were incubated overnight at 37°C. Genomic DNA was purified by multiple phenol/chloroform extractions and precipitated with ethanol. After resuspension, the DNA was digested with the appropriate restriction enzymes, separeted by gel electrophoresis, and transferred to Hybond N+ membranes. The membranes were hybridized by random hexamer- radiolabeled probes, in church solution (0.5 M NaPi pH 5.5, 7% SDS), at 65°C. Filters were washed three times in 0.2X SSC, 0.1% SDS at 65°C and exposed to X-ray film at -70°C. When necessary, blots were stripped by incubation in 0.1X SSC, O.1% SDS at 95°C. Most probes were prepared by PCR amplification of BAC109 sequences, using the following primers: Probe 1: S-5'-AGATCTGAAGACATAATG-3', AS-5'-GCTCTCCATTTCTAT TAGGTC-3'; Probe 2:S-5'-ATAAGTATTTGGTACTTTCAC-3', AS-5'-TGCTAAGTGCCTACACTGAG3'; Probe 3: S-5'-GAGCGAAACTATTCTGACAG3', AS-5'-AAGCTTCCTCCTCTATGGCAA-3'; Probe 4: S-5'-GATTTCTGCTAAGATTGG-3', AS-5'-ATGTTCCCTCTAGAAACC-3'; Probe 6: S-5'-AGTTAGAGACAAGCCTAG-3', AS-5'-TTCTGGGATGTCTCAGGA-3'; Probe 7: S-5'-GCATTTTGAGGAAGTACCCA-3', AS-5'-CATGGCCATTTCTAACTGTG-3'; Probe 8: S-5'-CCAAGGAGCTTGGAGGGC-3', AS-5'-CTCGTAGAGTGCGGCCAA-3'; probe 9: S-5'-ACATCAATAGTTTGATAC-3', AS-5'-GGGTGTGGCTGTGCATTGTT-3'
Oakey RJ, Beechey CV: Imprinted genes: identification by chromosome rearrangements and post-genomic strategies. Trends Genet. 2002, 18: 359-366. 10.1016/S0168-9525(02)02708-7.
Delaval K, Feil R: Epigenetic regulation of mammalian genomic imprinting. Curr Opin Genet Dev. 2004, 14: 188-195. 10.1016/j.gde.2004.01.005.
Goldstone AP: Prader-Willi syndrome: advances in genetics, pathophysiology and treatment. Trends Endocrinol Metab. 2004, 15: 12-20. 10.1016/j.tem.2003.11.003.
Buiting K, Saitoh S, Gross S, Dittrich B, Schwartz S, Nicholls RD, Horsthemke B: Inherited microdeletions in the Angelman and Prader-Willi syndromes define an imprinting centre on human chromosome 15. Nat Genet. 1995, 9: 395-400. 10.1038/ng0495-395.
Ohta T, Gray TA, Rogan PK, Buiting K, Gabriel JM, Saitoh S, Muralidhar B, Bilienska B, Krajewska-Walasek M, Driscoll DJ, Horsthemke B, Butler MG, Nicholls RD: Imprinting-mutation mechanisms in Prader-Willi syndrome. Am J Hum Genet. 1999, 64: 397-413. 10.1086/302233.
Bielinska B, Blaydes SM, Buiting K, Yang T, Krajewska-Walasek M, Horsthemke B, Brannan CI: De novo deletions of SNRPN exon 1 in early human and mouse embryos result in a paternal to maternal imprint switch. Nat Genet. 2000, 25: 74-78. 10.1038/75629.
Bressler J, Tsai TF, Wu MY, Tsai SF, Ramirez MA, Armstrong D, Beaudet AL: The SNRPN promoter is not required for genomic imprinting of the Prader-Willi/Angelman domain in mice. Nat Genet. 2001, 28: 232-240. 10.1038/90067.
Yang T, Adamson TE, Resnick JL, Leff S, Wevrick R, Francke U, Jenkins NA, Copeland NG, Brannan CI: A mouse model for Prader-Willi syndrome imprinting-centre mutations. Nat Genet. 1998, 19: 25-31.
Chamberlain SJ, Brannan CI: The Prader-Willi syndrome imprinting center activates the paternally expressed murine Ube3a antisense transcript but represses paternal Ube3a. Genomics. 2001, 73: 316-322. 10.1006/geno.2001.6543.
Su AI, Wiltshire T, Batalov S, Lapp H, Ching KA, Block D, Zhang J, Soden R, Hayakawa M, Kreiman G, Cooke MP, Walker JR, Hogenesch JB: A gene atlas of the mouse and human protein-encoding transcriptomes. Proc Natl Acad Sci U S A. 2004, 101: 6062-6067. 10.1073/pnas.0400782101.
Lee S, Walker CL, Wevrick R: Prader-Willi syndrome transcripts are expressed in phenotypically significant regions of the developing mouse brain. Gene Expr Patterns. 2003, 3: 599-609. 10.1016/S1567-133X(03)00113-3.
Gray TA, Saitoh S, Nicholls RD: An imprinted, mammalian bicistronic transcript encodes two independent proteins. Proc Natl Acad Sci U S A. 1999, 96: 5616-5621. 10.1073/pnas.96.10.5616.
Chai JH, Locke DP, Ohta T, Greally JM, Nicholls RD: Retrotransposed genes such as Frat3 in the mouse Chromosome 7C Prader-Willi syndrome region acquire the imprinted status of their insertion site. Mamm Genome. 2001, 12: 813-821. 10.1007/s00335-001-2083-1.
Andrieu D, Watrin F, Niinobe M, Yoshikawa K, Muscatelli F, Fernandez PA: Expression of the Prader-Willi gene Necdin during mouse nervous system development correlates with neuronal differentiation and p75NTR expression. Gene Expr Patterns. 2003, 3: 761-765. 10.1016/S1567-133X(03)00138-8.
Pennacchio LA, Rubin EM: Genomic strategies to identify mammalian regulatory sequences. Nat Rev Genet. 2001, 2: 100-109. 10.1038/35052548.
Nobrega MA, Ovcharenko I, Afzal V, Rubin EM: Scanning human gene deserts for long-range enhancers. Science. 2003, 302: 413-10.1126/science.1088328.
Boccaccio I, Glatt-Deeley H, Watrin F, Roeckel N, Lalande M, Muscatelli F: The human MAGEL2 gene and its mouse homologue are paternally expressed and mapped to the Prader-Willi region. Hum Mol Genet. 1999, 8: 2497-2505. 10.1093/hmg/8.13.2497.
Landers M, Bancescu DL, Le Meur E, Rougeulle C, Glatt-Deeley H, Brannan C, Muscatelli F, Lalande M: Regulation of the large (approximately 1000 kb) imprinted murine Ube3a antisense transcript by alternative exons upstream of Snurf/Snrpn. Nucleic Acids Res. 2004, 32: 3480-3492. 10.1093/nar/gkh670.
Kantor B, Makedonski K, Green-Finberg Y, Shemer R, Razin A: Control elements within the PWS/AS imprinting box and their function in the imprinting process. Hum Mol Genet. 2004, 13: 751-762. 10.1093/hmg/ddh085.
Chomez P, De Backer O, Bertrand M, De Plaen E, Boon T, Lucas S: An overview of the MAGE gene family with the identification of all human members of the family. Cancer Res. 2001, 61: 5544-5551.
Kuo CH, Uetsuki T, Kim CH, Tanaka H, Li BS, Taira E, Higuchi H, Okamoto H, Yoshikawa K, Miki N: Determination of a necdin cis-acting element required for neuron specific expression by using zebra fish. Biochem Biophys Res Commun. 1995, 211: 438-446. 10.1006/bbrc.1995.1833.
Muscatelli F, Abrous DN, Massacrier A, Boccaccio I, Le Moal M, Cau P, Cremer H: Disruption of the mouse Necdin gene results in hypothalamic and behavioral alterations reminiscent of the human Prader-Willi syndrome. Hum Mol Genet. 2000, 9: 3101-3110. 10.1093/hmg/9.20.3101.
Jay P, Rougeulle C, Massacrier A, Moncla A, Mattei MG, Malzac P, Roeckel N, Taviaux S, Lefranc JL, Cau P, Berta P, Lalande M, Muscatelli F: The human necdin gene, NDN, is maternally imprinted and located in the Prader-Willi syndrome chromosomal region. Nat Genet. 1997, 17: 357-361.
Uetsuki T, Takagi K, Sugiura H, Yoshikawa K: Structure and expression of the mouse necdin gene. Identification of a postmitotic neuron-restrictive core promoter. J Biol Chem. 1996, 271: 918-924. 10.1074/jbc.271.2.918.
Nikaido I, Saito C, Mizuno Y, Meguro M, Bono H, Kadomura M, Kono T, Morris GA, Lyons PA, Oshimura M, Hayashizaki Y, Okazaki Y: Discovery of imprinted transcripts in the mouse transcriptome using large-scale expression profiling. Genome Res. 2003, 13: 1402-1409. 10.1101/gr.1055303.
Gerard M, Hernandez L, Wevrick R, Stewart CL: Disruption of the mouse necdin gene results in early post-natal lethality. Nat Genet. 1999, 23: 199-202. 10.1038/13828.
Bartolomei MS, Webber AL, Brunkow ME, Tilghman SM: Epigenetic mechanisms underlying the imprinting of the mouse H19 gene. Genes Dev. 1993, 7: 1663-1673.
This work was supported by grants from Prader-Willi France, the Anber foundation, the association pour la Recherche sur le Cancer (ARC) (grant #4329) and by the CNRS. We thank Marie-Geneviève Mattéi for the chromosomal location of transgenes, Mathieu Blanc and Pierre Pontarotti for their help in the analysis of the MAGE D genes phylogenetic relationships, Jérôme Cavaillé for the gift of the MBII-85 and -52 riboprobe vectors.
FW drafted the manuscript, designed the study, and carried out the PWS genes expression analysis, the transgenic analysis and the search for transcriptional regulatory elements. ELM contributed to the PWS gene expression analysis. NR carried out molecular studies on the transgenic lines and participated to the search for DNase I hypersensitive sites. LD was involved in the design of the transgenic studies. MR injected the transgene and established the transgenic lines. FM coordinated the project and participated to the manuscript draft.
