Genetic dissection of root architectural plasticity and identification of candidate loci in response to drought stress in bread wheat
BMC Genomic Data volume 24, Article number: 38 (2023)
The frequency of droughts has dramatically increased over the last 50 years, causing yield declines in cereals, including wheat. Crop varieties with efficient root systems show great potential for plant adaptation to drought stress, however; genetic control of root systems in wheat under field conditions is not yet well understood.
Natural variation in root architecture plasticity (phenotypic alteration due to changing environments) was dissected under field-based control (well-irrigated) and drought (rain-out shelter) conditions by a genome-wide association study using 200 diverse wheat cultivars. Our results revealed root architecture and plasticity traits were differentially responded to drought stress. A total of 25 marker-trait associations (MTAs) underlying natural variations in root architectural plasticity were identified in response to drought stress. They were abundantly distributed on chromosomes 1 A, 1B, 2 A, 2B, 3 A, 3B, 4B, 5 A, 5D, 7 A and 7B of the wheat genome. Gene ontology annotation showed that many candidate genes associated with plasticity were involved in water-transport and water channel activity, cellular response to water deprivation, scavenging reactive oxygen species, root growth and development and hormone-activated signaling pathway-transmembrane transport, indicating their response to drought stress. Further, in silico transcript abundance analysis demonstrated that root plasticity-associated candidate genes were highly expressed in roots across different root growth stages and under drought treatments.
Our results suggest that root phenotypic plasticity is highly quantitative, and the corresponding loci are associated with drought stress that may provide novel ways to enable root trait breeding.
Globally, 90–95% of the produced wheat is the hexaploid common wheat (Triticum aestivum L.), an important stable source of nutrients and fodder for the majority of the world’s population [1, 2]. As the global population is rapidly growing, the demand for wheat will also be high; thus, wheat production needs to increase to 70% by 2050 . Although the demand for wheat is becoming high, its production is being constrained by various abiotic factors, with drought being the main factor reducing wheat production by approximately 20% , including the following main climatic factors: water scarcity, flooding, high and low-temperature stress, making wheat vulnerable to yield losses during the grain-filling period.
Drought stress is the absence or lack of water in a given environment that could alter the biochemical, physiological and molecular systems of a plant. It is the main factor affecting the broad spectrum of agro-climatic production and productivity of wheat . Several biological processes regulate the drought tolerance of plants, which in turn affects grain yield . The root system architecture is a major factor for plant adaptation under different climatic conditions, including water stress conditions [6, 7]. Wheat is categorised as a monocot root system possessing both seminal and adventurous roots . There are several root morphological traits, which provide structural and mechanical strength of root system architecture in wheat contributing to water-deficit adaptation [7, 9]. The root traits of wheat, particularly during water scarcity, are important for water absorption and are also essential for nutrient uptake, such as nitrogen and phosphorus . During water-deficit stress, plants tend to change their root architectural structure, e.g. branched roots and increased root length, to meet their water needs . Therefore, rooting depth is considered an essential trait that may enhance the plant’s ability to minimise reduced productivity, especially when insufficient soil moisture is available. In deep soils with water reserves, a deep root system is crucial in drought tolerance [7, 12]. Root architectural traits that help improve the water uptake during drought stress conditions are proliferative rooting, such as lateral root number, length density, surface area and volume . The plant also adapts to drought stress by modulating the root system traits, decreasing lateral root diameter, and altering its root biomass . Moreover, cereal roots show plasticity to adapt to drought. Plasticity is caused by the phenotypic changes when exposed to variable environments may be of short or long duration. Plasticity in root phenotypes can be beneficial for drought adaptation [15, 16]. Recently, the genetic basis of root plasticity in enhancing drought adaptation has been successfully uncovered by a genome-wide association study (GWAS) [17, 18].
In the past few decades, the grain yield and quality of bread wheat have greatly focused on breeding. Due to population growth and climate changes, wheat adaptation to environmental stress conditions should be further improved. Using state-of-the-art phenotyping and sequencing methods, deep genetic and molecular bases of drought stress tolerance in wheat should be analysed and applied [19, 20]. Although the roots play an important role in plant tolerance to abiotic stresses and productivity, plant breeders mostly focus on above-ground traits because of the difficulty in investing in below-ground traits due to precise phenotyping, especially in large populations . Field-based genetic dissection of the root phenotypic traits in wheat, particularly at the flowering stage, is limited compared to other crops due to its genetic complexity and extensive root phenotyping. Due to limitations of field-based root phenotyping, rapid phenotyping strategies should be utilised to better understand genetic responses and rapid selection of root traits and associated genetic components to develop resilient wheat varieties through molecular breeding, showing the necessity of ensuring future food security [7, 22]. Nowadays, however, a rapid and popular root phenotyping method, known as “Shovelomics” is being used by digging up the upper part of the root systems in the field to phenotype the plant root system and/or root architectural traits [23, 24]. Nevertheless, “Shovelomics” is a well-established and reputed approach for field-based root phenotyping , and is reported that traits evaluated in the upper zone (around 30 cm soil depth) are indicative for the traits related to deep rooting . The prominent root traits like root convex area, root surface area (RSA), total root length (TRL) and the root volume (RV) of the upper zone are indicators of the whole root system development .
A GWAS applying a diverse association mapping panel with higher allelic diversity and historical recombination has a higher resolution than biparental quantitative trait loci (QTL) studies . High-density single nucleotide polymorphisms (SNPs) are a prerequisite for a successful GWAS [27, 28]. Furthermore, using the drought tolerance index and plasticity in GWAS provides valuable information for marker-assisted selection in wheat [18, 29]. Therefore, GWAS has popularly become an essential tool in identifying SNPs/alleles associated with complex traits, such as root-related traits in bread wheat that provides a genetic basis for identifying causal genes .
Given the significance of the investigation of root-mediated bread wheat tolerance to drought stress and its associated genetic architecture, we formulated the following objectives: (i) to assess the root phenotypic diversity of winter bread wheat cultivars grown under control and drought stress conditions, (ii) to identify drought-responsive loci underlying candidate genes associated with root phenotypic plasticity responses and (iii) determine transcript expression levels of plasticity-associated genes in comparing different organs, including roots and drought stress conditions, as they showed involvement in drought.
Root phenotypic diversity and correlation analysis in response to drought stress
Root architecture-related traits in wheat cultivars were evaluated under both control and water-deficit stress conditions at the complete flowering stage (BBCH65, Biologische Bundesanstalt, Bundessortenamt und Chemische Industrie) to identify the candidate genes underlying drought-responsive loci by employing a GWAS. A two-way analysis of variance (ANOVA) showed that the effects of genotypes were highly significant (P < 0.001) among most of the phenotypic traits, except root average diameter (RAD) showed a weak significant difference (P < 0.05) (Table 1). Moreover, treatment effects revealed highly significant differences for all studied traits. Interaction between the genotype and treatment demonstrated highly significant differences among all analysed traits (P > 0.05) (Table 1). The heritability calculation demonstrated a high broad-sense heritability (H2) for all studied traits, such as TRL, RSA, RAD, number of root tips (NRT), number of root forks (NRF), number of root crossings (NRC) and RV with ranges from 0.73 to 0.87, indicating that the wheat association panel may harbour a wider range of genetic diversity in root traits to confer drought stress response. The highest stress tolerance index (STI) was observed for TRL, NRT, NRF and NRC and compared to other traits (Table 1), implying that those traits might largely contribute to adjusting roots to the water-deficit environment.
Similarly, the calculated stress plasticity for TRL (+ 44.22), NRT (+ 91.52), NRF (+ 52.27) and NRC (+ 219.73) showed increasing trends, whereas the RSA (-0.86), RAD (-34.3) and RV (-32.05) were reduced under water-deficit stress than control conditions, respectively (Table 1). Further, ANOVA revealed significant genotypic differences (P > 0.05) for all of the calculated plasticity traits (Table 1). Pearson’s product-moment correlation based on genotype mean under drought treatment showed that TRL is highly and significantly correlated with NRF (0.92) and NRT (0.94), NRC with NRF (0.95) and RV with RSA (0.96), suggesting that RSA traits maintain an interconnection to accommodate the plant root system to drought stress. In contrast, RAD showed a negative correlation with the majority of the traits, except RSA and RV. However, RSA with NRF and TRL did not show any significant correlations (Fig. S1).
Genetic association mapping and identification of candidate plasticity loci for drought tolerance
To identify SNPs, the association mapping was conducted based on root morphology traits in response to drought stress and plasticity as a trait. Based on the calculated drought stress plasticity, all evaluated traits, e.g. plasticity of the total root length (pTRL), plasticity of the average root diameter (pRAD) and plasticity of the number of root tips (pNRT), demonstrated a significant association with SNPs (Figs. 1, 2 and 3). To minimize the false-positive results of the markers to trait association, an MLM was used with five PC and kinship matrices, as previously described by . Based on false discovery rate (FDR)-adjusted threshold level (–log10P > 4.0), a total of 25 SNPs were identified for plasticity-related traits (pTRL, pRAD and pNRT) and RSA, NRF and RV traits in response to drought stress (Table 2). For other traits, very weak associations were observed as revealed by –log10p-values and quantile-quantile (Q–Q) plots (Figs. S2-S5). Next, LD analysis was performed based on significant SNPs to define a region containing plausible candidate genes. A total of 38 blocks harbouring 235 putative genes were defined (Table 3, Table S1). Significant markers and SNP positions were located on chromosomes 1 A, 2 and 5 A that were more likely associated with the RSA response during drought conditions, such as those responsible for water deprivation, root hair, and root cell differentiation (chromosome 1 A), in response to environmental stress (chromosome 2 A), and phenotypic switching and cellular response to heat (chromosome 5 A) (Table S1; Fig. S6). Interestingly, candidate genes were found to be related to plasticity responses, indicating their putative relationships towards drought stress (Table 4); therefore, prioritized the plasticity traits in detail.

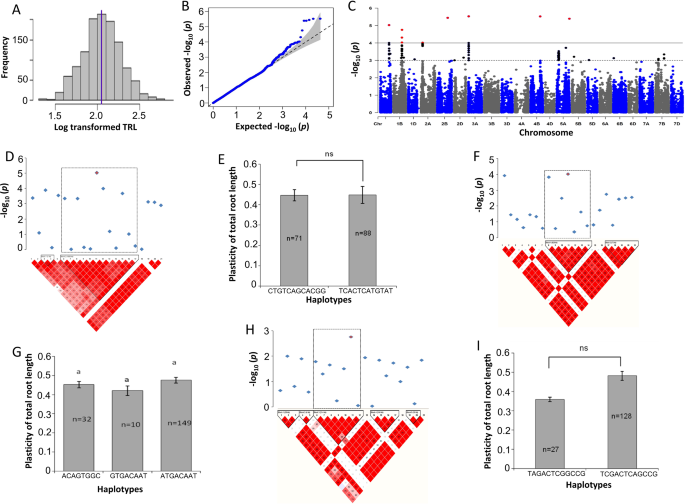

Plasticity of the total root length
The association mapping of the pTRL was performed from TRL mean values, yielding significant marker-trait associations (MTAs) (Fig. 1). The log-transformed TRL data demonstrated the normal distribution with equal mean and median values (Fig. 1a). The Q-Q plot showed that the observed P-value of pTRL deviated from the expected P-value (Fig. 1b). Manhattan plot revealed that nine SNPs passed the threshold level at 5% FDR. Those MTAs occurred on chromosome 1B, one consistent peak consisting of three significant SNPs and on other chromosomes 1A, 2 A, 3 A, 4B and 5 A, each peak consisting of only one SNP (Fig. 1c). The LD block heat-map indicated that significant SNP markers of chromosome 1A (AX-490,522,663) grouped with other 11 SNP markers on a major LD block (Fig. 1d, e). The significant SNP of chromosome 2 A (AX-89,768,547) was grouped with other six SNPs on a major LD block (Fig. 1f). The major LD block of chromosome 3 A with significant SNP was grouped with six other SNPs (Fig. 1g).
The LD block on chromosome 1 A contained two main haplotypes, CTGTCAGCACGG and TCACTCATGTAT, which belonged to 71 and 88 cultivars, respectively. For both haplotypes, no significant differences were observed for pTRL based on Student’s t-test (Fig. 1d, e). The LD block of chromosome 2 A contained three main haplotypes, 32 cultivars possessing ACAGTGGC, 10 containing GTGACAAT and 149 harbouring ATGACAAT and all three haplotypes did not differ from each other in their association values with pTRL (Fig. 1f, g). Another LD block on chromosome 3 A also formed two main haplotypes, TAGACTCGGCCG within 27 genotypes and TCGACTCAGCCG 128 cultivars, and also showed a non-significant difference for the pTRL trait (Fig. 1 h, i).
The major LD blocks for the pTRL contained putative candidate genes with annotation in multiple biological processes, such as response to the heat and reactive oxygen species, water deprivation, responses to environmental stress and abiotic stimulus, cellular response to auxin signaling pathway, root hair elongation and lateral root development (Table 4).

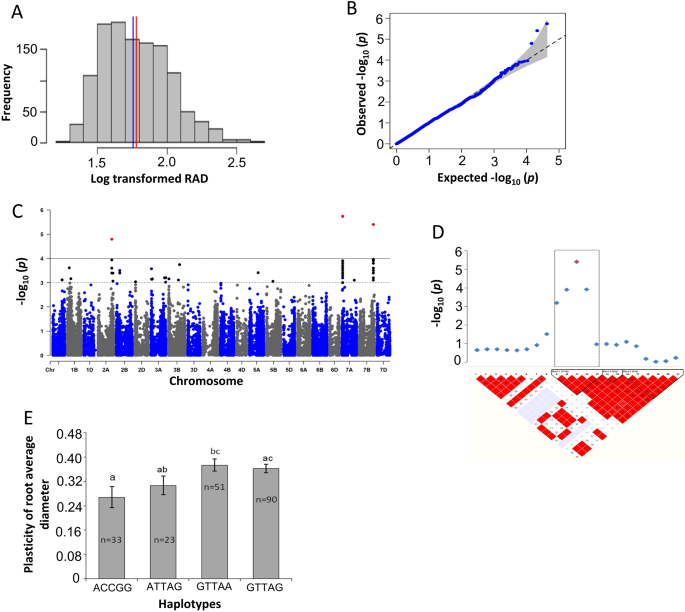

Plasticity of the average root diameter
The association mapping conducted on pRAD has shown significant MTAs (Fig. 2). The log-transformed data revealed a normal distribution with equal mean and median values (Fig. 2a). The Q-Q plot indicated the observed P-value of pRAD that deviated from the expected P-value (Fig. 2b). Manhattan plot suggested that three SNPs satisfied the threshold level at 5% FDR, which all relied on chromosomes 2A, 7 A and 7B (Fig. 2c). The LD block heat-map indicated significant SNP markers of chromosome 7B (AX-700,388,976) lineage with their four neighbour SNP markers on a major LD block (Fig. 2d). The LD block on chromosome 7B established four main haplotypes, in which ACCGG belonged to 33 cultivars, ATTAG carried 23 cultivars, GTTAA belonged to 51 cultivars and GTTAG possessed 90 cultivars for pRAD traits (Fig. 2e). The Student’s t-test analysis for these four haplotypes showed that ACCGG and GTTAA haplotypes had significant differences for the trait, and when compared to the haplotypes, both showed non-significant differences for pRAD (Fig. 2e).
The LD block for pRAD with significant SNP markers harboured candidate genes associated with biological processes, such as cellular response to auxin stimulus, jasmonic acid-mediated signaling pathway, potassium ion transmembrane transport, stabilized membrane potential and response to the light intensity with the molecular activity of hydrolysis (Table 4).

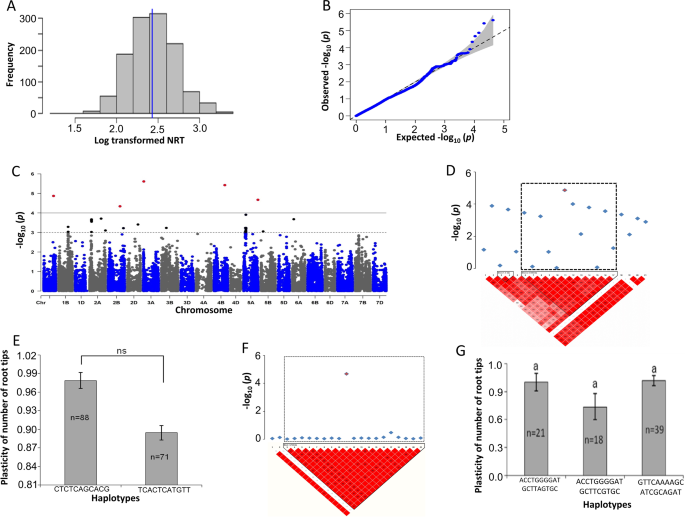

Plasticity of the number of root tips
To perform the association mapping, stress plasticity was calculated using the NRT values, which revealed significant MTAs (Fig. 3). The normality distribution of NRT displayed by the log-transformed data contained exactly equal mean and median values (Fig. 3a). The Q-Q plot revealed the observed P-value of pNRT that deviated from the expected P-value (Fig. 3b). The Manhattan plot implied that five SNPs confirmed the threshold level at 5% FDR. These five SNPs were found on chromosomes 1 A, 2 A, 3A, 4B and 5 A (Fig. 3c). Significant SNP markers on chromosome 1 A (AX-490,522,663) established an LD block by linkage with the other 11 SNP markers (Fig. 3d). The LD block of significant SNP markers on chromosome 5 A (AX-705,374,739) formed a linkage with the other 18 neighbour SNPs (Fig. 3e). The LD block on chromosome 1 A contained two main haplotypes, 88 cultivars carrying CTGTCAGCACG, whereas 71 cultivars possessed TCACTCATGTT and the Student’s t-test analysis showed that both haplotypes had non-significant differences for the pNRT (Fig. 3d). The LD block on chromosome 5 A contained three main haplotypes, with ACCTGGGGATGCTTAGTGC belongs to 21 cultivars, ACCTGGGGATGCTTCGTGC on 18 cultivars, and GTTCAAAAGCATCGCAGAT on 39 cultivars, which all exhibited non-significant differences for pNRT (Fig. 3d).
The LD block for pNRT containing candidate genes showed functional associations in different biological functions, such as responses to water deprivation, response to heat, response to reactive oxygen species, root hair cell differentiation, root hair elongation, lateral root development, response to auxin and other hormones, phenotypic switching, hyperosmotic salinity response and also molecular activity, such as water channel, hydrolysis and ATPase (Table 4).

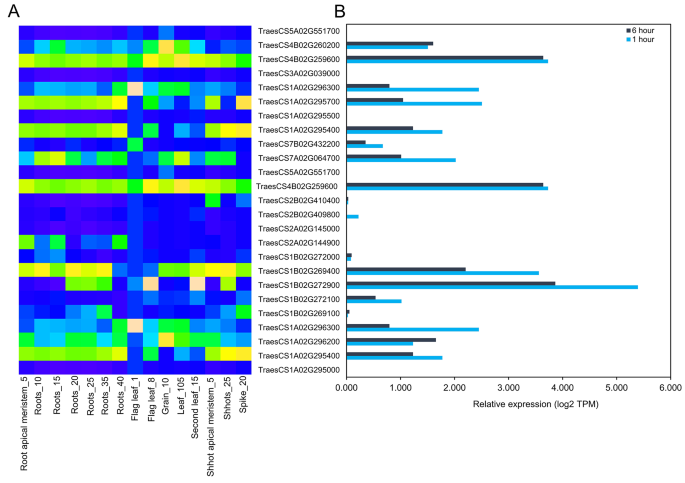

Expression analysis of identified candidate genes under drought stress
Expression levels of identified candidate genes were estimated using the WheatGmap browser (https://www.wheatgmap.org) . We observed a wide range of transcript expression for these genes in different developmental stages, including multiple root growth stages (Fig. 4a). Among the top 25 short-listed plasticity-associated candidate genes based on their functional annotations in drought (Table 4), the majority of candidate genes were found to be highly expressed in roots at different developmental stages (Fig. 4a, Table S2), indicating that they might be involved in root growth and development. Next, their expression levels were determined using the above-mentioned WheatGmap database after 1 and 6 h of drought imposition (Fig. 4b). Varying expression levels were observed among selected candidate genes, whereas eight genes were stably and largely expressed in response to both 1 and 6 h of drought treatments (Fig. 4b, Table S3). Interestingly, these eight genes were particularly expressed in the roots and simultaneously under drought stress, predicting that these genes play vital roles in root developmental plasticity to better withstand plants’ to drought stress.
In wheat, root architectural traits are crucial in water and nutrient acquisition, and root growth patterns have been reported to be highly affected by soil water availability . Importantly, root architectural traits are plastic in response to drought crucial for water and nutrient acquisition, anchorage and storage [18, 34]. Therefore, elaborating our knowledge on the genetic control of root architectural trait plasticity and uncovering their associated candidate genes will be useful to improve wheat productivity in water-limited areas.
To analyze the genetic components of root architectural plasticity to water availability, root system traits were phenotyped under normal watering and drought conditions by withdrawing water supply from tillering to the flowering stage of the wheat growth to identify natural genetic variations and putative genes associated with RSA plasticity. As a result of drought imposition, wheat cultivars showed significant phenotypic variations of root traits, including TRL, RAD, NRF, NRC and NRF, indicating that these traits are more responsive during water-deficit stress (Tables 1 and 27). The results obtained in this study were similar to those of a previous study on water-deficit stress conditions, showing that plants increase the root length to enter into the deep soil layers to better explore the soil and is accompanied by drought tolerance [35, 36]. The results presented here also indicated that the RAD decreased during a water shortage, whereas TRL was increased (Table 1). This might be the candidate for improving plant adaptation to drought. Reduced root diameter with greater root length has been established as a trait involving the enhancement of plant productivity during drought . A narrow root diameter is beneficial for plants that can efficiently increase hydraulic conductance to minimize the root apoplastic barrier for entering water into the xylem [38,39,40]. Conversely, we found that the RSA and RV of the root were found to be decreased under drought conditions at the complete flowering stage (Table 1). Similarly, recent studies also reported that wheat genotypes under drought showed differential responses of root traits due to their growth stages, such as the increased RSA during the anthesis stage but reduced at the maturity stage , which may indicate that the RSA and RV of the root responses vary with plant growth stages. However, the NRF and NRC are also crucial root architecture traits that plays a significant role in enhancing the penetration ability of pants into the soil layers, resulting in a positive effect on accessing water and nutrients . We observed that wheat genotypes increased the NRT under drought conditions than in the control condition (Table 1). Increasing the lateral root number helps plants to improve the water transport to sustain the drought stress condition and for rapid access to soil moisture [43, 44]. Pearson’s product-moment correlation heat-map showed that TRL was negatively correlated with RAD and positively correlated with NRT, NRF and NRC (Fig. S1), indicating that drought stress resulted in a decreased root diameter with an increased root length and root number that might be critical for increasing total water uptake area .
Before performing a GWAS, fulfilling the requirements of individuals with high genetic diversity is essential for obtaining more allelic variations . The LD patterns of the 200 genotypes decayed after 19.0, 38.0 and 17.5 Mbp for A, B and D genome, respectively, indicating that the LD decay patterns of the B genome was slower than the A and B genome . In this GWAS, an MLM, including the PC and kinship matrix, enabled to avoidance of false MTAs . Following these approaches, a total of 25 significant SNPs harbouring 235 putative candidate genes were detected for the trait associated with plasticity, such as pTRL, pRAD and pNRT and drought-treated RSA, NRF and RV after a successful FDR correction (Tables 2 and 3), although NRC did not yield any significant SNPs. These results indicate that those root traits were controlled by a diverse set of genes to adjust to drought conditions . A total of 235 possible candidate loci were identified across wheat chromosomes, which were associated with root trait responses during drought stress. (Tables 2 and 3). The majority of the SNP related to plasticity was located on chromosomes 1 A, 2 and 5 A associated with a better response for root plasticity traits under water-deficit stress (Figs. 1, 2 and 3). The abundant genomic regions in wheat for drought and root-related traits are detected on chromosomes 1 A, 2 and 5 A encompassing plausible genes upregulated during abiotic stresses .
The LD analysis detects neighboring and associated SNPs based on the relationship of SNPs on the adjacent stretch of genomic regions within the population; thereby, LD explains genetic variations over the population . The putative candidate genes were identified based on LD blocks harbouring significant SNP markers (Tables 3 and 4). The LD-based GWAS successfully delivers chromosomal regions underlying candidate genes affecting the plant adaptation to environmental stresses [31, 51]. Next, haplotype analysis was performed for plasticity-related traits, pTRL, pRAD and pNRT. For the pTRL on chromosome 1 A, two haplotype blocks, and 2 A, and chromosome 3 A in two haplotypes were abundantly observed under drought stress conditions (Fig. 1d-i). The pRAD contained four main haplotypes on chromosome 7B, which were associated with the plasticity of RAD under drought conditions (Fig. 2d, e). Haplotype blocks of the pNRT trait on chromosome 1 A formed two and on chromosome 5 A three distinct haplotypes, respectively. Those were widely dispersed on cultivars that may be related to the pNRT under drought conditions (Fig. 3d-g). Interestingly, all adaptive loci carrying major haplotypes were found to have larger contributions to the root phenotypic plasticity under drought when compared with minor haplotypes (Figs. 1, 2 and 3), suggesting that exchanging these haplotype alleles could induce root phenotypic adaptation to drought conditions.
Candidate genes associated with pTRL under drought conditions showed biological functions on responses to heat and reactive oxygen species, water deprivation, environmental stress response and abiotic stimulus, cellular response to auxin signaling pathway, root hair elongation and lateral root development (Table 4). Another study showed that some genes can regulate the auxin signaling pathway under drought stress and assist in lateral root formation or root elongation to access more water from its surrounding environments . The putative candidate genes for pRAD were associated with the cellular response to auxin stimulus, jasmonic acid-mediated signaling pathway and stabilization of membrane potential (Table 4). The genes were upregulated in response to drought for increasing cell division, tropisms, vascular differentiation and root meristem maintenance. Moreover, a jasmonic-acid-responsive gene shows an interactive function for the plant’s tolerance to abiotic stress conditions .
The pNRT under water-deficit conditions was putatively controlled by multiple candidate genes (Table 4). Upregulations of genes responsible for root water deprivation and abscisic-acid biosynthesis associated with auxin transport to the root tips are major factors of drought stress tolerance . Overall, we short-listed 25 plasticity candidate genes showing highly putative relationships with drought (Table 4). In silico transcript expression analysis showed distinct expression levels of eight candidate genes in root under drought treatments in multiple root growth stages (Fig. 4). This result confirms that these eight candidate genes are particularly associated with drought stress adaptation underlying the root growth plasticity.
In this study, root phenotypic traits were quantified in the global collection of winter wheat cultivars with and without water supply in the field environment. Substantial genetic variations were revealed for all of the root traits in response to drought and plasticity that determines the phenotypic responses to water availability. Further, the identified MTAs and candidate genes, especially for root phenotypic plasticity, will be useful for further functional studies in improving the wheat root systems to better withstand plants in water-deficit soils. These results also provide additional insights into the drought-induced natural root system variations within diverse wheat germplasms. These results also reveal that the elite candidate loci/genes in wheat are more responsive to root trait plasticity. Therefore, plasticity-associated markers and candidate genes could be useful for breeding tolerant wheat varieties. However, further in-depth investigation is crucial to better understand the genetic relationships between the phenotypic plasticity of root architectural traits and candidate SNPs underlying drought adaptation, which may hasten root-targeted breeding programs to develop drought-resilient wheat cultivars.
Materials and methods
In this study, a total of 200 diverse wheat cultivars were used to assess the genetic diversity of root architecture traits as described by  and . The full names and the source of wheat cultivars are available in Siddiqui et al. . Among these 200 cultivars, 60% were obtained from Germany and the others from different countries.
The field experiment was conducted in the 2019–2020 wheat growing season under natural rain-fed (control) and rain-out shelter (drought stress) conditions, as previously described by . The experiment was designed as a split-plot over randomized complete block design (RCBD), where treatments (control and drought) were defined as main plots. The 200 wheat cultivars were sown in a RCBD within the main plots with three replications; each plot contained one cultivar in a single row length of 0.5 m and a between-row distance of 0.21 m. Each plot contained four rows flanked by two border rows to avoid edge effects. Each plot was irrigated by movable sprinklers that deliver ~ 5.00 L/m2 water per day. Then, drought was induced by withholding water and closing the roof cover. Drought treatment was applied from the tillering initiation phase at the end of April 2020 (BBCH21) to the complete flowering phase around the middle of June 2020 (BBCH65). The soil water content of well-watered treatment was ranged from 0.18 to 0.20 m3m3, whereas drought-treated plots ranges from 0.063 to 0.079 m3m3 throughout the drought periods . The soil texture of the experimental plot was a Haplic Luvisol derived from loamy silt . Details of fertilizer application, management practices and soil moisture levels (0–30 cm) under control and drought treatment were described by .
Root phenotyping using the ‘Shovelomics’ approach
The wheat root system was phenotyped by the “Shovelomics” protocol, i.e. digging out the upper part of the wheat root and determining the root architectural traits [23, 57, 58]. The root systems from three individual plants per plot were excavated at BBCH65 using a shovel to maintain a distinct depth of 27 cm (distance from the cutting edge to the shoulder of a shovel) at a distance of ~ 0.2 m away from the plant base to avoid root destruction from both the control and drought-stressed plants . The lumps of excavated soil containing the roots were dissolved by submerging them in a freshwater bucket until the soil was removed from the roots (Fig. S7). Thereafter, the roots were gently washed to remove the remaining soil particles and rinsed with clean water. After fine washing, the roots were separated from the shoot by cutting at the root-shoot junction. The clean and fresh roots were preserved with 50% alcohol in a plastic pot. Then, the preserved roots were scanned using an Epson scanner (Perfection LA24000) with a resolution of 600 dots per inch and root images were analyzed using the WinRhizo software (Regent Instruments Inc., Quebec, Canada) to record the root architectural traits [17, 57].
The collected phenotypic data on root system traits were analyzed using the R software version 3.6.1 . Before analysis, extreme outliers we removed based on the following criteria of the mean of all accessions ± 3 standard deviation (SD), as described by . Then, data normality was tested following the histogram evaluation, Shapiro-Wilk test and box plot in the R studio. For the descriptive study, a two-way ANOVA for root system traits such as; total root length (TRL), root average diameter (RAD), root surface area (RSA), number of root tips (NRT), number of root crossings (NRC), number of root forks (NRF) and root volume (RV) was conducted. During the ANOVA analysis, cultivar and treatment effects were considered as fixed effects with the interaction, whereas block was considered as a random effect . Descriptive statistics such as the mean, median, mode, min, max, coefficient of variation, and SD, were analyzed. Besides, Pearson’s pairwise correlations (r) were calculated for all RSA traits to determine the correlation between phenotypes using statgraphics version 18.1.13 software. Heritability was estimated using broad-sense heritability (H2) and calculated using the following formula : H2 = VG/(VG+VE/r), where VG is the estimation of genetic variance, VE is the estimation of error variance for each treatment and r is the number of replications of each cultivar. Stress plasticity of the root system architectural traits was calculated using the following equation: (P)= (WW-WS)/WW, where WS is water stress and WW is well-watered as described by . Moreover, STI of root traits of all cultivars was estimated by taking the phenotypic values under water stress and well-watered conditions using the following equation: STI= (WS × WW)/(mean WW)2 where WS is water stress and WW is well-watered, following .
Genome-wide association study
The GWAS was conducted for seven root architectural traits (TRL, RAD, RSA, NRT, NRC, NRF, and RV) under water-stressed conditions. A total of 24,216 SNP markers were obtained employing the genomic DNA extraction process  which was used to evaluate the genetic variation of the root traits. The association mapping was performed using the TASSEL software 5.2.54 , following the mixed linear model (MLM) including five principal components (PC) and a kinship matrix . To set the significant threshold, a 5% FDR was calculated using the ‘qvalue’ package of the R software . The Q-Q plot and rectangular Manhattan plots were prepared using the CM plot package of R . Significant SNP markers were defined based on the FDR threshold and satisfy the requirements of FDR q-value < 5% considered as true positive .
Candidate gene selection and expression analysis
For each root trait, the Plink formats of the data and LD were analyzed using Haploview 4.2 to identify the candidate loci . The defined LD block heat map was determined based on the D´ value in the upper confidence bounds exceeded 0.98 and lower bounds of > 0.7 . To compare the haplotype belonging to a block with significant SNP markers, the student’s t-test (two samples assuming equal variances) and Tukey’s test > 2 haplotype comparisons were performed. LD blocks with highly significant SNP markers were expected to carry putative candidate loci. Significant SNPs that did not establish haplotype blocks, i.e. the genes close to these loci (1 Mbp from both sides) were considered putative candidate genes as stated by . The gene annotation and ontology were conducted in the wheat URGI database . To locate significant SNPs on various chromosomes, a map chart was generated following . Further, expression profiles of the drought-associated candidate genes were curated using the publicly available RNA-seq data .
All data generated or analyzed during this study are included in this published article and its supplementary information files. The accession and genetic polymorphisms data are available here: https://doi.org/10.1038/s41598-021-85226-1.
Genome wide association studies
quantitative trait loci
single nucleotide polymorphisms
plasticity of the total root length
plasticity of the average root diameter
plasticity of the number of root tips
randomized complete block design
total root length
root average diameter
root surface area
number of root tips
number of root crossings
number of root forks
stress tolerance index
mixed linear model
Giraldo P, Benavente E, Manzano-Agugliaro F, Gimenez E. Worldwide research trends on wheat and barley: a bibliometric comparative analysis. Agronomy. 2019;9:352.
Sallam A, Alqudah AM, Dawood MFA, Baenziger PS, Börner A. Drought stress tolerance in wheat and barley: advances in physiology, breeding and genetics research. Int J Mol Sci. 2019;20:3137.
Ray DK, Ramankutty N, Mueller ND, N, et al. Recent patterns of crop yield growth and stagnation. Nat Commun. 2012;3:1293.
Daryanto S, Wang L, Jacinthe PA. Global synthesis of drought effects on maize and wheat production. PLoS ONE. 2016;11:e0156362.
Zhu Y, Weiner J, Yu M, Li F. Evolutionary agroecology: Trends in root architecture during wheat breeding. Evol Appl. 2019;12:733–43.
Khan MA, Gemenet DC, Villordon A. Root system architecture and abiotic stress tolerance: current knowledge in root and tuber crops. Front Plant Sci. 2016;7:1584.
Siddiqui MN, Léon J, Naz AA, Ballvora A. Genetics and genomics of root system variation in adaptation to drought stress in cereal crops. J Exp Bot. 2021a;72:1007–19.
Nguyen VL, Stangoulis J. Variation in root system architecture and morphology of two wheat genotypes is a predictor of their tolerance to phosphorus deficiency. Acta Physiol Plant. 2019;41:109.
Ahmed MA, Zarebanadkouki M, Meunier F, Javaux M, Kaestner A, Carminati A. Root type matters: measurement of water uptake by seminal, crown, and lateral roots in maize. J Exp Bot. 2018;69:1199–206.
Alahmad S, El Hassouni K, Bassi FM, Dinglasan E, et al. A major root architecture QTL responding to water limitation in durum wheat. Front Plant Sci. 2019;10:436.
Fenta B, Beebe S, Kunert K, Burridge J, Barlow K, Lynch J, Foyer C. Field phenotyping of soybean roots for drought stress tolerance. Agronomy. 2014;4:418–35.
Christopher J, Christopher M, Jennings R, et al. QTL for root angle and number in a population developed from bread wheats (Triticum aestivum) with contrasting adaptation to water-limited environments. Theor Appl Genet. 2013;126:1563–74.
Jaganathan D, Thudi M, Kale S, et al. Genotyping-by-sequencing based intra-specific genetic map refines a ‘‘QTL-hotspot” region for drought tolerance in chickpea. Mol Genet Genomics. 2015;290:559–71.
Salazar-Henao JE, Vélez-Bermúdez IC, Schmidt W. The regulation and plasticity of root hair patterning and morphogenesis. Development. 2016;143:1848–58.
Kano-Nakata M, Gowda VR, Henry A, Serraj R, Inukai Y, et al. Functional roles of the plasticity of root system development in biomass production and water uptake under rainfed lowland conditions. Field Crops Res. 2013;144:288–96.
Prince SJ, Murphy M, Mutava RN, Durnell LA, Valliyodan B, Shannon JG, Nguyen HT. Root xylem plasticity to improve water use and yield in water-stressed soybean. J Exp Bot. 2017;68(8):2027–36.
Kadam NN, Tamilselvan A, Lawas LM, et al. Genetic control of plasticity in root morphology and anatomy of rice in response to water deficit. Plant Physiol. 2017;174(4):2302–15.
Schneider HM, Klein SP, Hanlon MT, Nord EA, Kaeppler S, Brown KM, Warry A, Bhosale R, Lynch JP. Genetic control of root architectural plasticity in maize. J Exp Bot. 2020;71:3185–97.
Crespo-Herrera LA, Crossa J, Huerta-Espino J, et al. Genetic yield gains in CIMMYT’S international elite spring wheat yield trials by modeling the genotype× environment interaction. Crop Sci. 2017;57:789–801.
Sukumaran S, Lopes M, Dreisigacker S, Reynolds M. Genetic analysis of multi-environmental spring wheat trials identifies genomic regions for locus-specific trade-offs for grain weight and grain number. Theor Appl Genet. 2018;131:985–98.
Oyiga BC, Palczak J, Wojciechowski T, Lynch JP, Naz AA, Léon J, Ballvora A. Genetic components of root architecture and anatomy adjustments to water-deficit stress in spring barley. Plant Cell Environ. 2020;43:692–711.
Mwadzingeni L, Shimelis H, Dube E, Laing MD, Tsilo TJ. Breeding wheat for drought tolerance: Progress and technologies. J Integr Agric. 2016;15:935–43.
Trachsel S, Kaeppler SM, Brown KM, Lynch JP. Shovelomics: high throughput phenotyping of maize (Zea mays L.) root architecture in the field. Plant Soil. 2011;341(1):75–87.
Klein SP, Schneider HM, Perkins AC, Brown KM, et al. Multiple Integrated Root phenotypes are Associated with Improved Drought Tolerance. Plant Physiol. 2020;183:1011–25.
Adu MO, Asare PA, Yawson DO, Amoah KK et al. (2022) Root system traits contribute to variability and plasticity in response to phosphorus fertilization in 2 field-grown sorghum [Sorghum bicolor (L.) Moench] Cultivars. Plant Phenomics: 0002.
Khan MA, Korban SS. Association mapping in forest trees and fruit crops. J Exp Bot. 2012;63:4045–60.
Cui F, Zhang N, Fan X, et al. Utilization of a wheat 660K SNP array-derived high-density genetic map for high-resolution mapping of a major QTL for kernel number. Sci Rep. 2017;7:3788.
Cericola F, Jahoor A, Orabi J, Andersen JR, Janss LL, Jensen J. Optimizing training population size and genotyping strategy for genomic prediction using association study results and pedigree information. A case of study in advanced wheat breeding lines. PLoS ONE. 2017;12:e0169606.
Ballesta P, Mora F, Del Pozo A. Association mapping of drought tolerance indices in wheat: QTL-rich regions on chromosome 4A. Sci Agric. 2020;77:e20180153.
Li L, Peng Z, Mao X, Wang J, Chang X, Reynolds M, Jing R. Genome-wide association study reveals genomic regions controlling root and shoot traits at late growth stages in wheat. Ann Bot. 2019;124:993–1006.
Siddiqui MN, Teferi TJ, Ambaw AM, et al. New drought-adaptive loci underlying candidate genes on wheat chromosome 4B with improved photosynthesis and yield responses. Physiol Plant. 2021b;173(4):2166–80.
Zhang L, Dong C, Chen Z, et al. WheatGmap: a comprehensive platform for wheat gene mapping and genomic studies. Mol Plant. 2020;14:187–90.
Liu W, Wang J, Wang C, et al. Root growth, water and nitrogen use efficiencies in winter wheat under different irrigation and nitrogen regimes in North China Plain. Front Plant Sci. 2018;9:1798.
Wasaya A, Zhang X, Fang Q, Yan Z. Root phenotyping for drought tolerance: a review. Agronomy. 2018;8:241.
Friedli CN, Abiven S, Fossati D, Hund A. Modern wheat semi-dwarfs root deep on demand: response of rooting depth to drought in a set of swiss era wheats covering 100 years of breeding. Euphytica. 2019;215:85.
Wasson AP, Richards RA, Chatrath R, Misra SC, Prasad SV, Rebetzke GJ, et al. Traits and selection strategies to improve root systems and water uptake in water-limited wheat crops. J Exp Bot. 2012;63:3485–98.
Hernández EI, Vilagrosa A, Pausas JG, Bellot J. Morphological traits and water use strategies in seedlings of Mediterranean coexisting species. Plant Ecol. 2010;207:233–44.
Comas LH, Mueller KE, Taylor LL, Midford PE, Callahan HS, Beerling DJ. Evolutionary patterns and biogeochemical significance of angiosperm root traits. Int J Plant Sci. 2012;173:584–95.
Comas LH, Becker SR, Cruz VMV, Byrne PF, Dierig DA. Root traits contributing to plant productivity under drought. Front Plant Sci. 2013;4:442.
Sun Y, Zhang S, Chen W. Root traits of dryland winter wheat (Triticum aestivum L.) from the 1940s to the 2010s in Shaanxi Province, China. Sci Rep. 2020;10(1):1–13.
Aljuaifari WAR, Al-fadhal FA, Kadum H, Hadi WH, Center RS. (2018) Study physiology of roots growth for soybean by WinRhizo pro-software with Vam3 genes. In International Conference on Promotion of Scientific & Regional Cooperation on Food and Agricultural Sciences, Mashhad, Iran.
Ruiz S, Koebernick N, Duncan S, et al. Significance of root hairs at the field scale – modelling root water and phosphorus uptake under different field conditions. Plant Soil. 2020;447:281–304.
Putnik-Delic M, Maksimovic I, Nagl N, Lalic B, Antonio C. (2018) Plant, abiotic stress and responses to climate change.
Zhang K, Liu Y, Luo L, Zhang X, Li G, Wan Y, Liu F. Root traits of peanut cultivars with different drought resistant under drought stress at flowering and pegging phase. Acta Agric Scand B— Soil Plant Sci. 2021;71(5):363–76.
Milner SG, Jost M, Taketa S, Mazón ER, et al. Genebank genomics highlights the diversity of a global barley collection. Nat Genet. 2019;51:319–26.
Kang HM, Sul JH, Service SK, Zaitlen NA, Kong SY, et al. Variance component model to account for sample structure in genome-wide association studies. Nat Genet. 2010;42:348–54.
Koua AP, Oyiga BC, Dadshani S, Benaouda S, Sadeqi MB, et al. Chromosome 3A harbors several pleiotropic and stable drought-responsive alleles for photosynthetic efficiency selected through wheat breeding. Plant Direct. 2022;6(9):e438.
Courtois B, Ahmadi N, Khowaja F, et al. Rice root genetic architecture: meta-analysis from a drought QTL database. Rice. 2009;2:115–28.
Soriano JM, Alvaro F. Discovering consensus genomic regions in wheat for root-related traits by QTL meta-analysis. Sci Rep. 2019;9(1):1–14.
Bush WS, Moore JH. Chap. 11: genome-wide Association Studies. PLoSComput Biol. 2012;8:e1002822.
Begum H, Alam MS, Feng Y, Koua P, et al. Genetic dissection of bread wheat diversity and identification of adaptive loci in response to elevated tropospheric ozone. Plant Cell Environ. 2020;43(11):2650–65.
Koevoets IT, Venema JH, Elzenga J, Theo M, Testerink C. Roots withstanding their environment: exploiting root system architecture responses to abiotic stress to improve crop tolerance. Front Plant Sci. 2016;07:1335.
Ali M, Baek KH. Jasmonic acid signaling pathway in response to abiotic stresses in plants. Int J Mol Sci. 2020;21(2):621.
Grzesiak MT, Hordyńska N, Maksymowicz A, Grzesiak S, Szechyńska-Hebda M. Variation among spring wheat (Triticum aestivum L.) genotypes in response to the drought stress. II—Root Syst Struct Plants. 2019;8:584.
Voss-Fels KP, Stahl A, Wittkop B, et al. Breeding improves wheat productivity under contrasting agrochemical input levels. Nat Plants. 2019;5(7):706–14.
Koua AP, Oyiga BC, Baig MM, Léon J, Ballvora A. Breeding driven enrichment of genetic variation for key yield components and grain starch content under drought stress in winter wheat. Front Plant Sci. 2021;12:684205.
Siddiqui MN, Schneider M, Barbosa MB, Léon J, Ballvora A. Natural selection under conventional and organic cropping systems affect root architecture in spring barley. Sci Rep. 2022;12(1):1–15.
Siddiqui MN, Pandey K, Bhadhury SK, Sadeqi B, Schneider M et al. (2023). Convergently selected NPF2. 12 coordinates root growth and nitrogen use efficiency in wheat and barley. New Phytologist. doi: https://doi.org/10.1111/nph.18820.
Core Team 59R R (, Ramankutty N, Mueller ND, West PC, Foley JA. (2012) Recent patterns of crop yield growth and stagnation. Nat Commun 3: 1293.
Ueda Y, Frimpong F, Qi Y, Matthus E, Wu L, Höller S, Kraska T, Frei M. Genetic dissection of ozone tolerance in rice (Oryza sativa L.) by a genome-wide association study. J Exp Bot. 2015;66:293–306.
Gitonga VW, Koning-Boucoiran CF, Verlinden K, et al. Genetic variation, heritability and genotype by environment interaction of morphological traits in a tetraploid rose population. BMC Genet. 2014;15:146.
Nouraein M, Mohammadi SA, Aharizad S, Sadeghzadeh B. Evaluation of drought tolerance indices in wheat recombinant inbred line population. Ann Biol Res. 2013;4(3):113–22.
Dadshani S, Mathew B, Ballvora A, et al. Detection of breeding signatures in wheat using a linkage disequilibrium-corrected mapping approach. Sci Rep. 2021;11:5527.
Waples RK, Albrechtsen A, Moltke I. Allele frequency-free inference of close familial relationships from genotypes or low‐depth sequencing data. Mol Ecol. 2019;28:35–48.
Chen X, Robinson DG, Storey JD. (2019) The functional false discovery rate with applications to genomics. Biostatistics kxz010.
Nkambule LL. (2020) gwaRs: an R shiny web application for visualizing genome-wide association studies data. bioRxiv. https://doi.org/10.1101/2020.04.17.044784.
Barrett JC, Fry B, Maller J, Daly MJ. Haploview: analysis and visualization of LD and haplotype maps. Bioinformatics. 2005;21:263–5.
Gabriel SB. The structure of haplotype blocks in the human genome. Science. 2002;296:2225–9.
Alaux M, Rogers J, Letellier T, et al. Linking the international wheat genome sequencing Consortium bread wheat reference genome sequence to wheat genetic and phenomic data. Genome Biol. 2018;19:111.
Voorrips RE. MapChart: software for the graphical presentation of linkage maps and QTLs. J Hered. 2002;93(1):77–8.
We are highly grateful to the German Academic Exchange Service (DAAD) for providing a fellowship to Md. Nurealam Siddiqui. We are also acknowledged to Bahman Sadeqi, Marissa B. Barbossa, Patrice Koua and Karin Woitol for their help during root harvesting and phenotyping. We extend acknowledgement to the staff of Campus Klein-Altendorf to take care the field experiments.
Open Access funding enabled and organized by Projekt DEAL. We gratefully acknowledge Breeding Innovations in Wheat for Resilient Cropping Systems (BRIWECS) project funded by the German Federal Ministry of Education and Research (BMBF), PTJ for funding with the grant 031A354. AB acknowledges funding from the Deutsche Forschungsgemeinschaft under Germany’s Excellence Strategy – EXC 2070–390732324 (PhenoRob).
The authors declare no competing interests.
Ethics approval and consent to participate
The cultivar and genotype file were used with the permission of related responsible person (Dr. Agim Ballvora, INRES-Plant Breeding, University of Bonn) and data were complied with national or international guidelines and legislation.
Consent for publication
