Fig. 1 | BMC Genomic Data

Fig. 1

From: Enhanced tolerance to drought stress resulting from Caragana korshinskii CkWRKY33 in transgenic Arabidopsis thaliana

Fig. 1

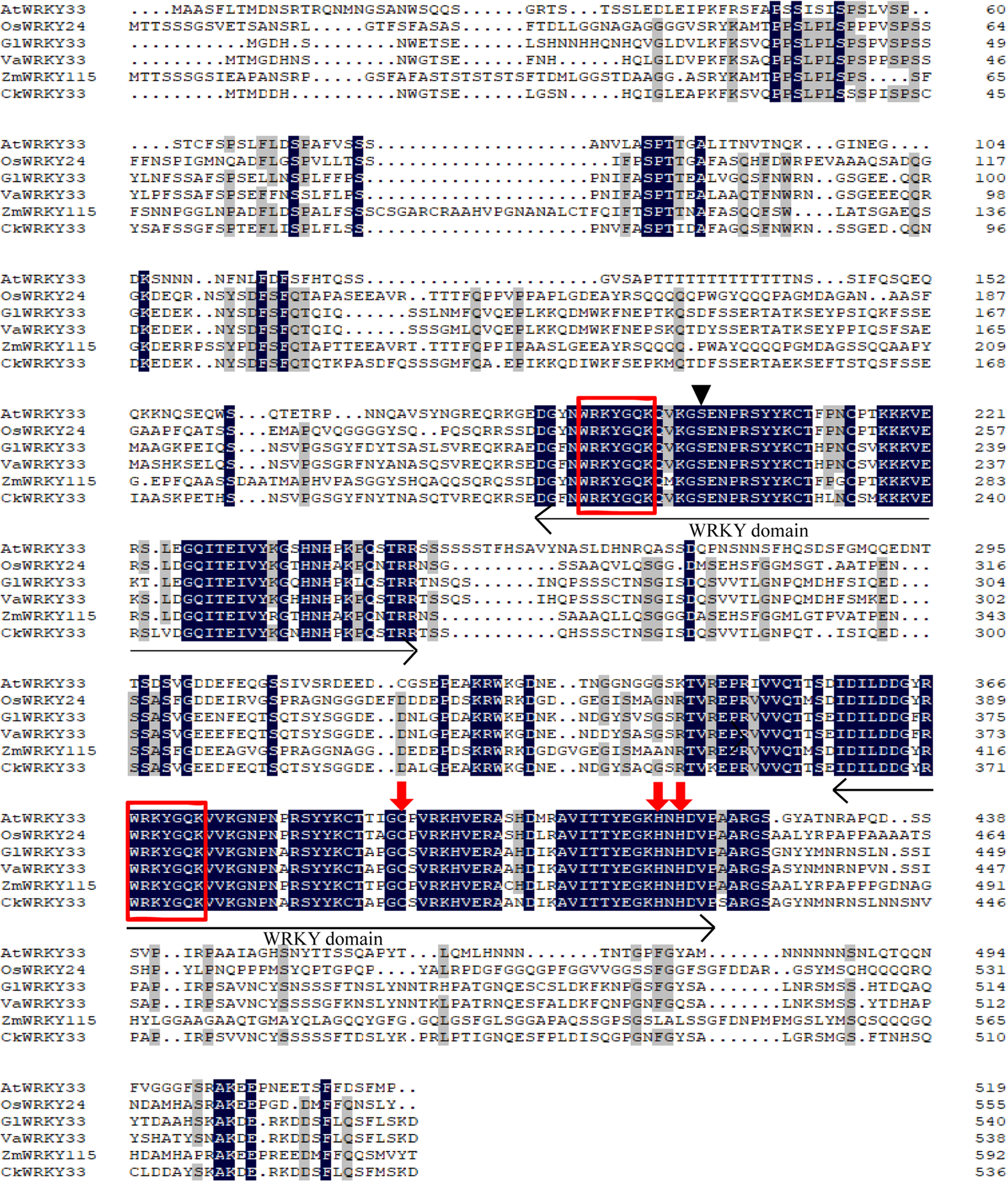

Alignment of the putative amino acid sequence of CkWRKY33 with sequences from Arabidopsis (ACE74719.1), Glycine max (XP_014626730.1), rice (Os01t0826400), Vigna angularis (XP_017442339.1), and maize (Zm00001d012482_T001). Identical amino acids are shaded in black. Approximately 60 amino acids of the WRKY domain and the cysteine and histidine residues of the putative zinc-finger motif are marked by a two-headed arrow and red arrow, respectively. The putative nuclear localization signal and the highly conserved amino acid sequence WRKYGQK in the WRKY domain are enclosed by red boxes
